Secure. Smart. Seamless dvLED Control
Color Accurate Regardless of Brightness
Designed with Integrators in Mind
Lossless Compression Technology
Intuitive GUI & Health Status

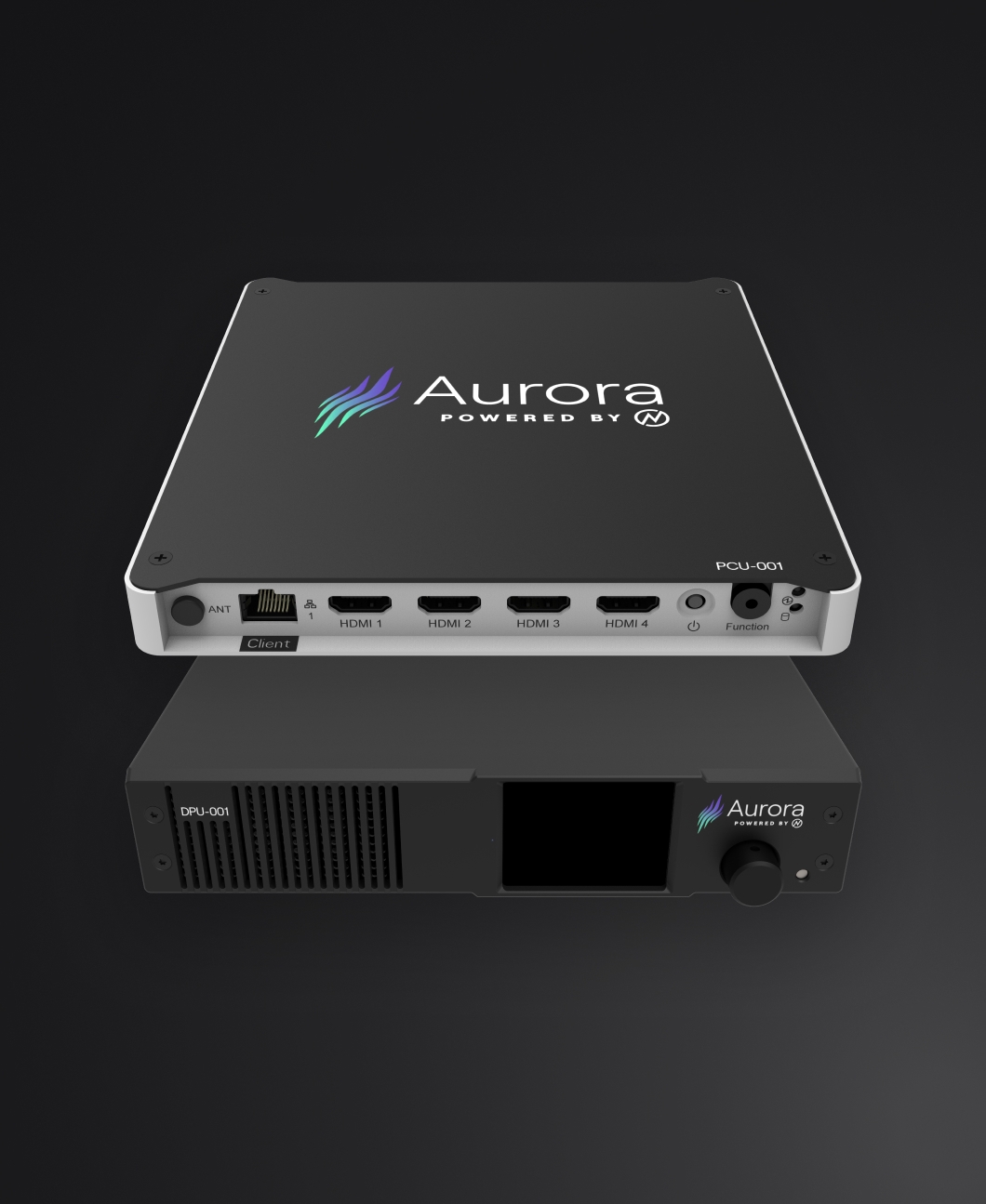

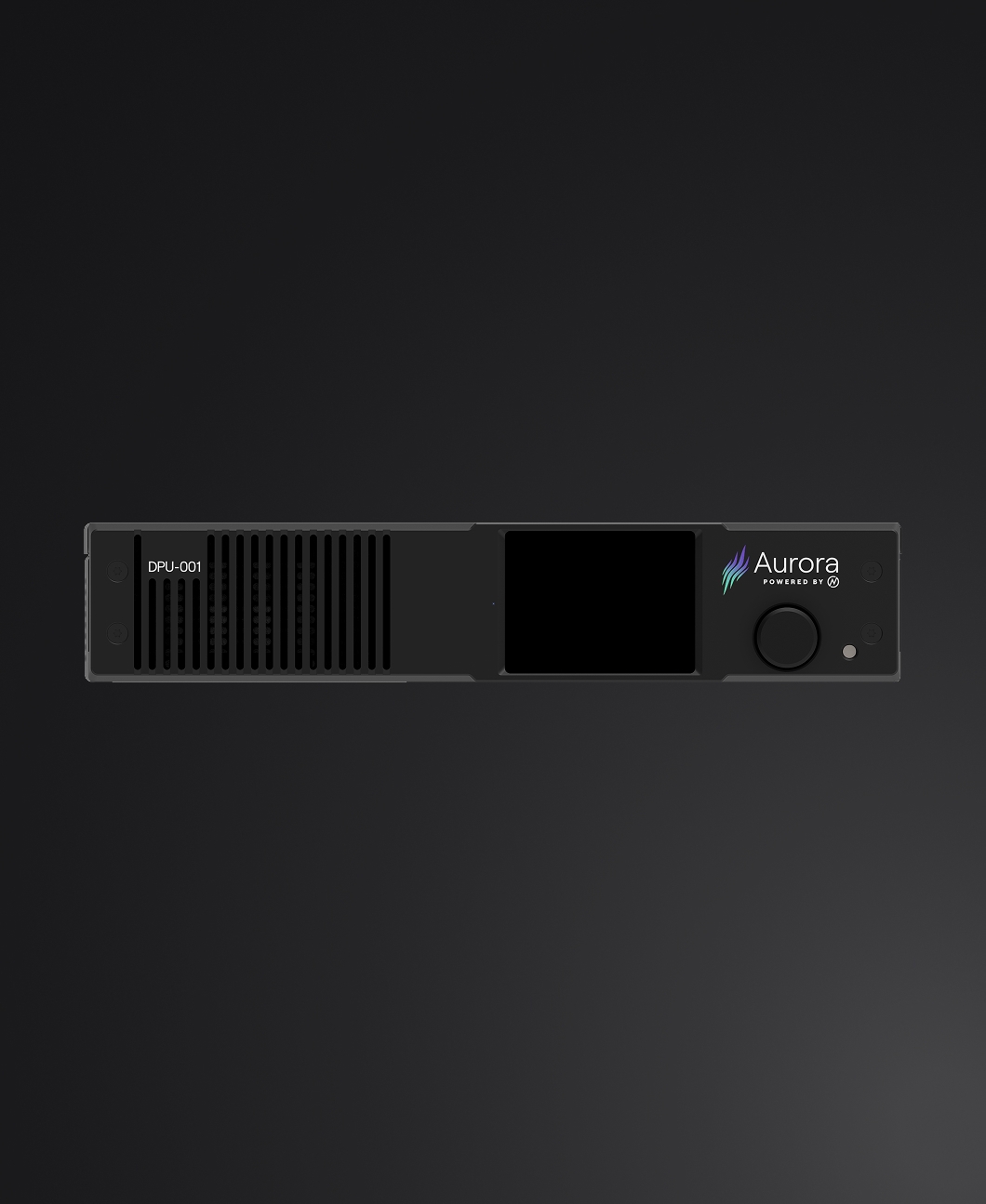

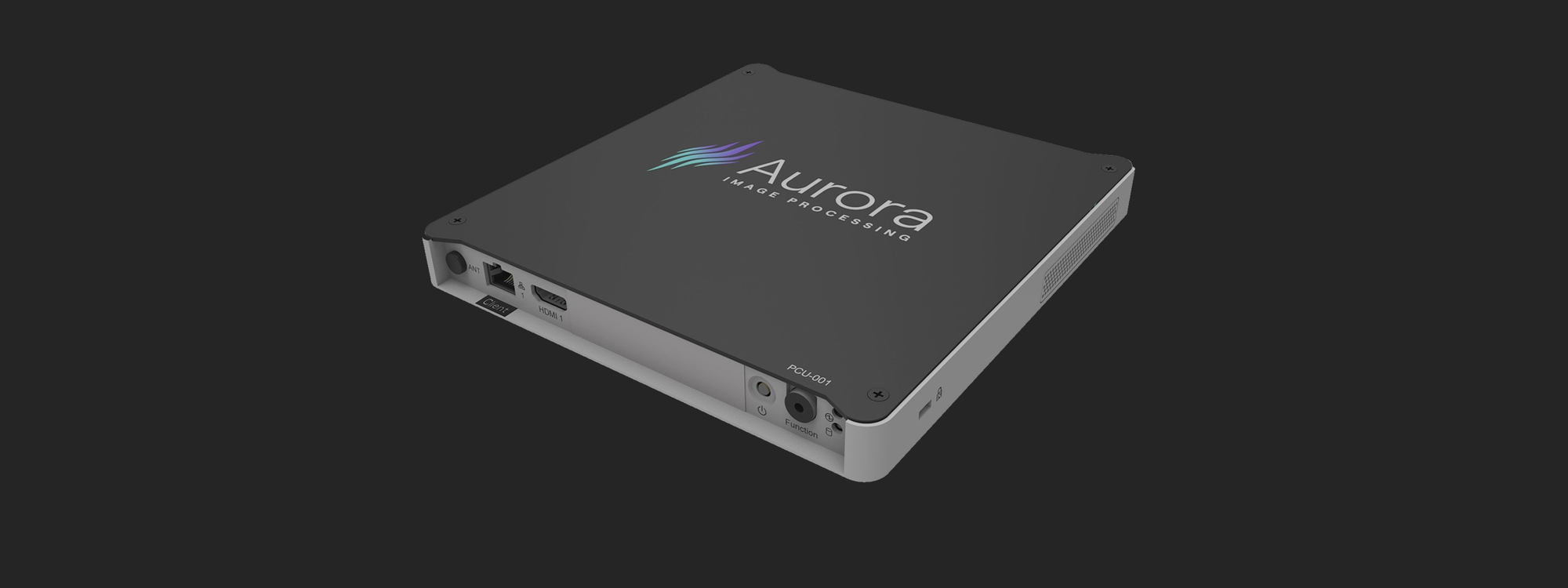

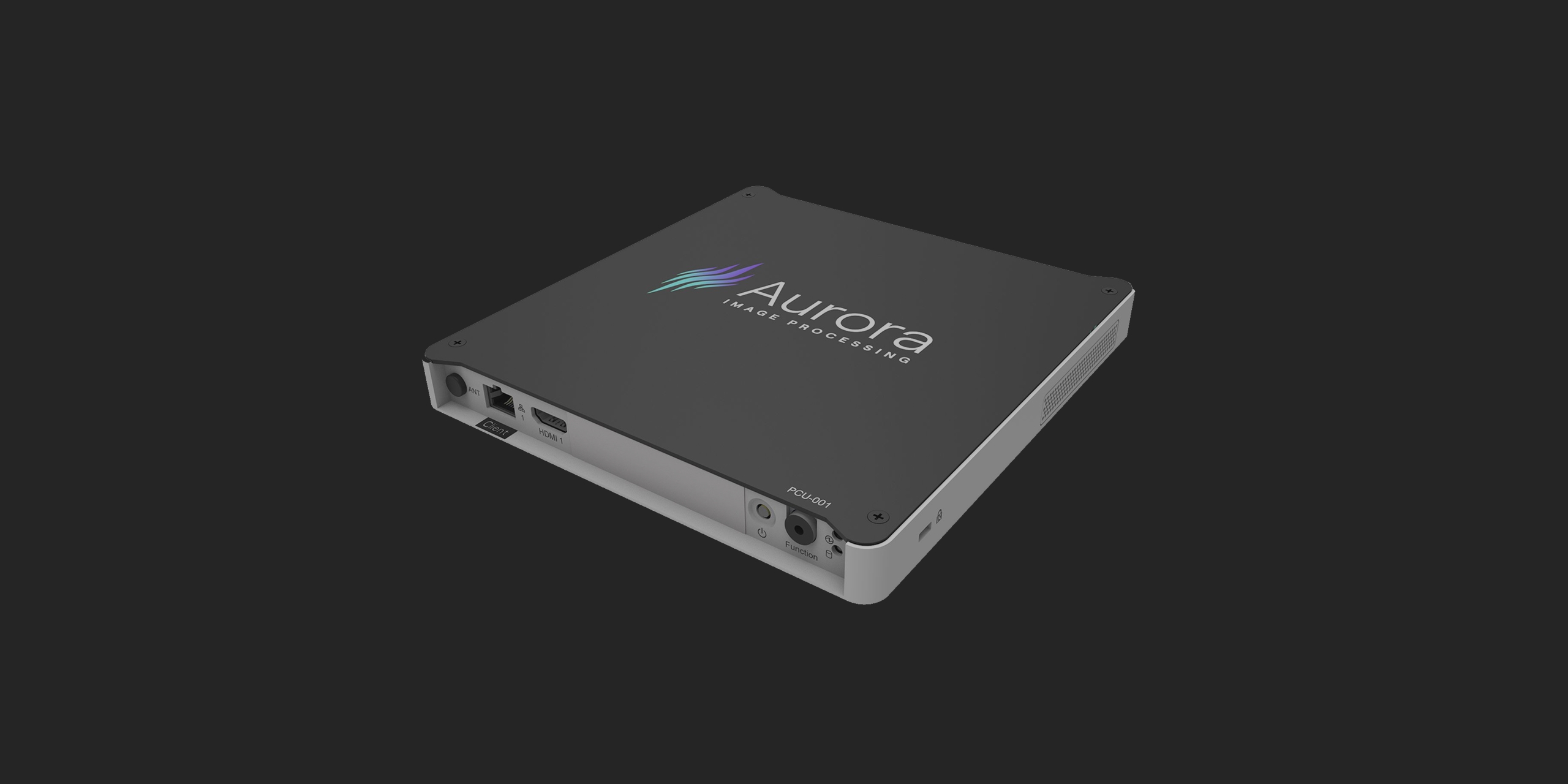

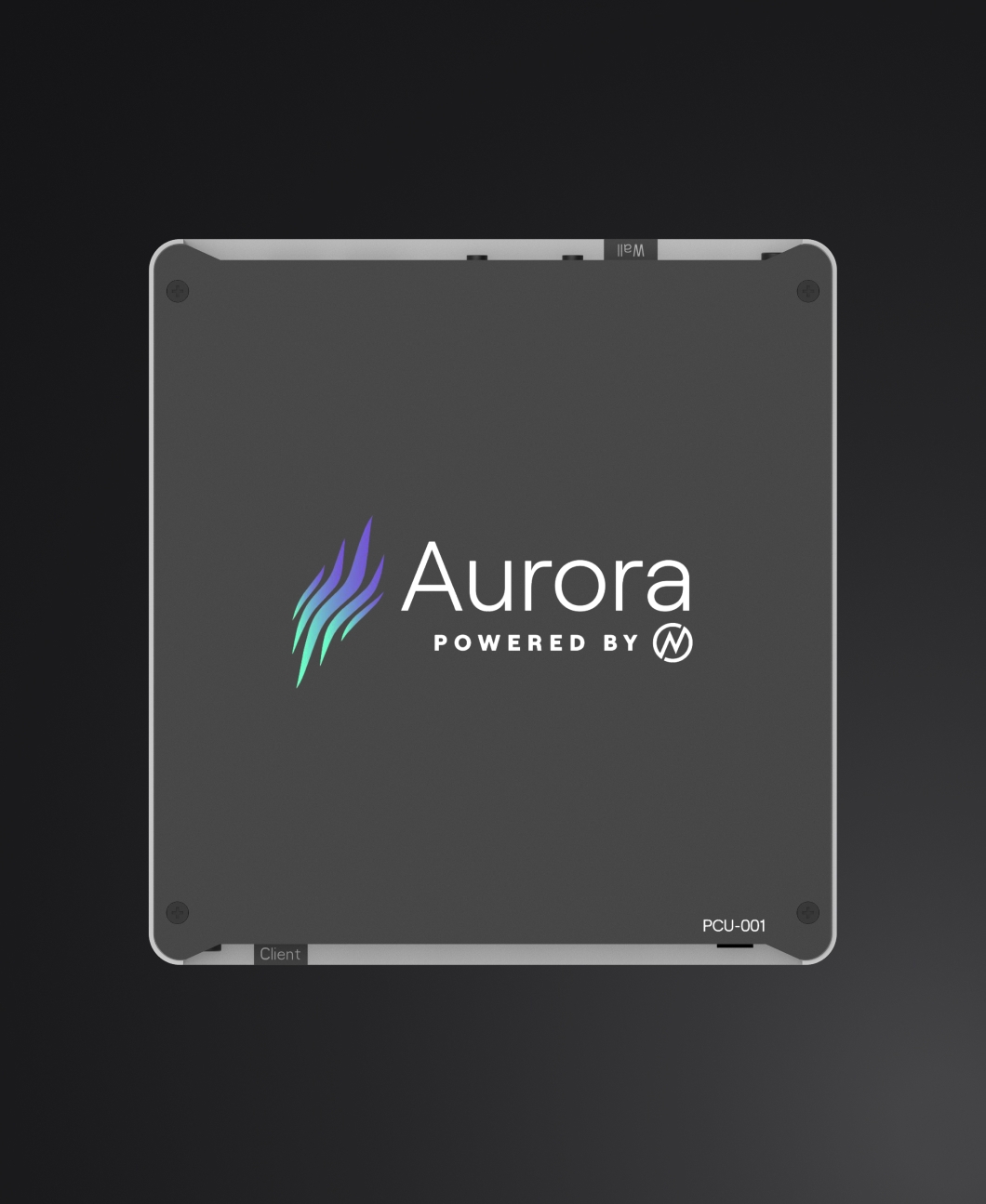

Aurora is Nanolumens’ most advanced LED processing platform, engineered to deliver uncompromised visual fidelity, intelligent system integration, and exceptional ease of use. It powers LED displays with cinematic-grade color accuracy, true-to-source tone mapping, and seamless control via NanoSuite.
Aurora features 23-bit processing and supports professional color standards such as DCI-P3, Rec. 709, and Rec. 2020. This enables:
– Bold, vibrant color saturation
– True-to-life skin tones and textures
– Intelligent gamut switching for automatic HDR adaptation
Unlike traditional 14- or 16-bit systems, Aurora’s 23-bit processing preserves subtle gradients, precise contrast, and full color fidelity—even at low brightness levels. This eliminates banding, color artifacts, and the green haze effect often seen in dimmed displays.
Aurora maintains full visual clarity even below 10% brightness. Its advanced signal handling and calibration eliminate green tint, banding, and haze, making it ideal for dim environments and high-dynamic-range (HDR) content.
NanoSuite is a centralized control and diagnostics platform for Aurora-powered displays. It offers:
– Real-time performance monitoring
– Remote troubleshooting
– Instant firmware updates
– Simplified system commissioning

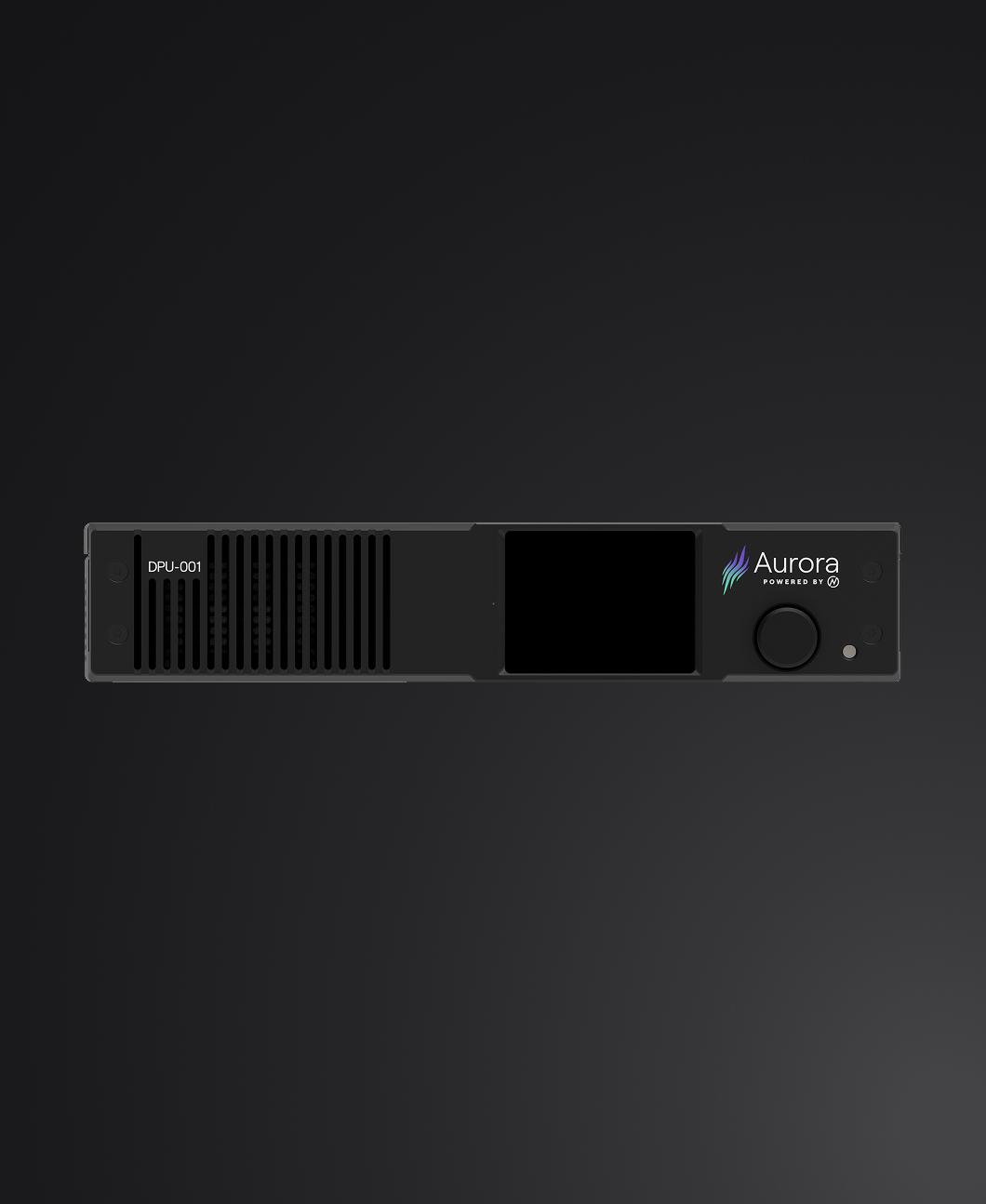

Not at all. Aurora requires no setup files and supports instant commissioning. Calibration data is stored at the module level, so replacing a tile triggers automatic recalibration—no laptops, flash drives, or manual syncing needed.
Aurora includes enterprise-grade security features:
– End-to-end content encryption
– Secure data transmission protocols
– User authentication and audit logging
– Verified software updates
– Integration with Barco CTRL for enhanced system protection
Aurora is optimized for ultra-low latency, ensuring fast-moving visuals—such as flashes or high-speed video—render smoothly and instantly, without tearing or lag. This is essential for broadcast, simulation, and mission-critical applications.
Absolutely. Aurora is designed for maximum flexibility, adapting seamlessly to curved, architectural, or immersive environments—without compromising performance or image quality.

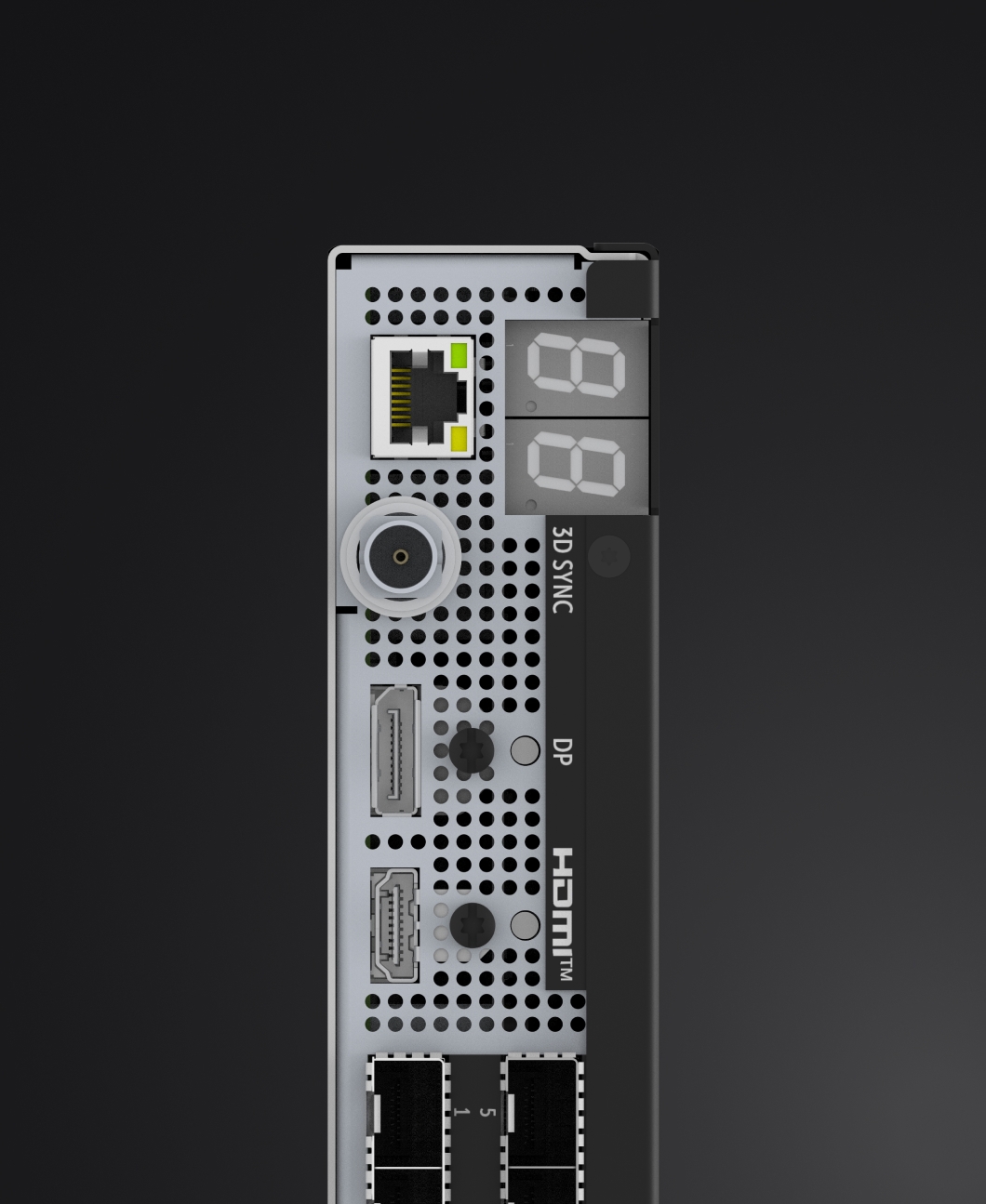

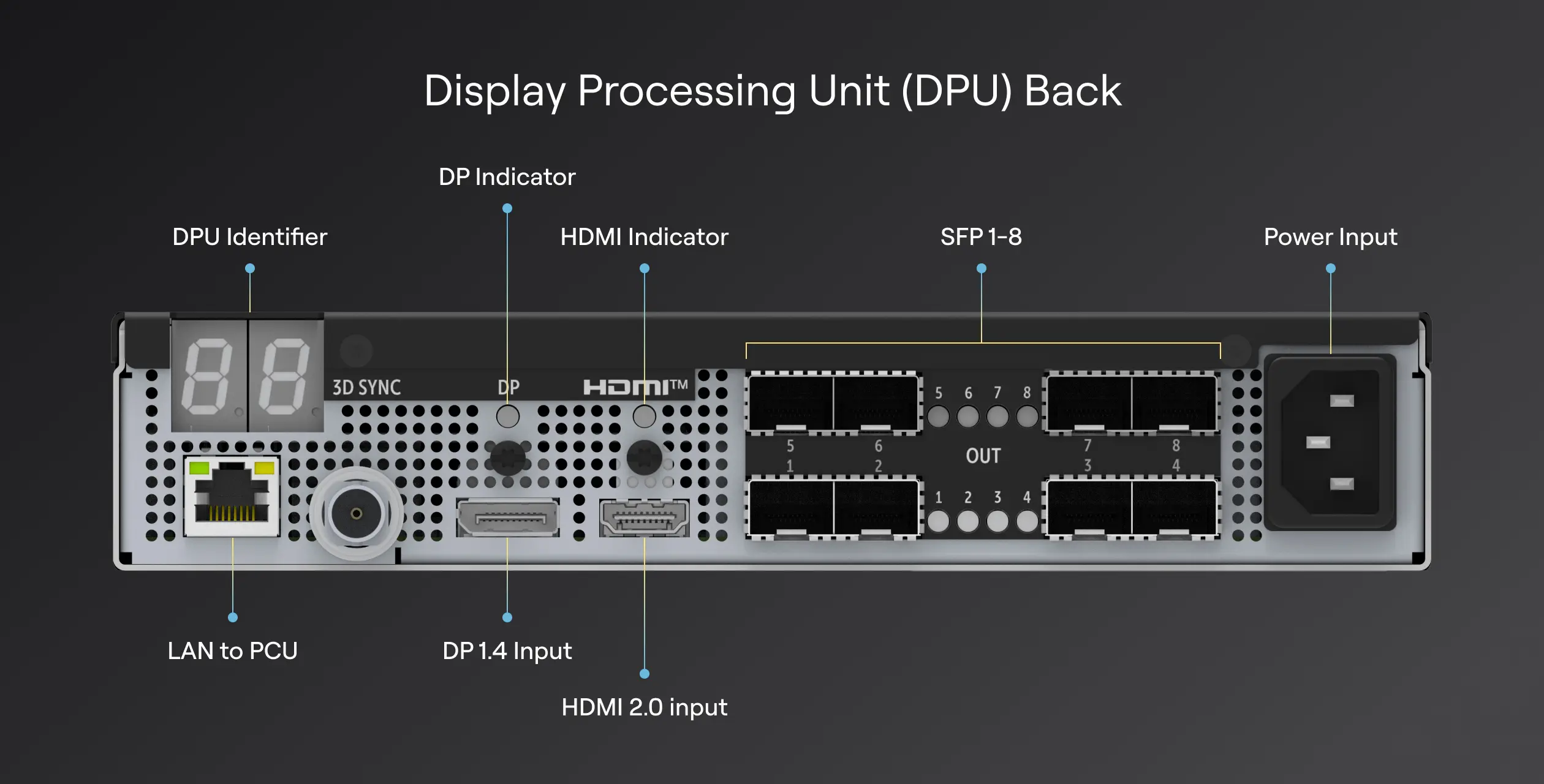

| Processor Control | 1x GbE RJ-45 to PCU |
|---|---|
| Input |
1x HDMI 2.0 (type A) and 1x DP1.4 HDMI 2.0 (Type A): • Up to 4096×2160@60Hz at 4:4:4 at 8 bpc (24 bit/px) • Up to 4096×2160@60Hz at 4:2:2 at 12 bpc (36 bit/px) DisplayPort 1.4: • Up to 7680×4320@30, YCbCr 4:2:2 at 12bpc (36 bit/px) • Up to 3840×2160@60Hz RGB, or YCbCr 4:4:4 at 12 bpc (36 bit/px) • Up to 3840×2160@120Hz, YCbCr 4:2:2 at 12bpc (36 bit/px) with custom timings Input capabilities: • Progressive RGB and YCbCr 4:2:2 and 4:4:4 • Supports input bit depth of up to 12 bpc • Refresh frequencies: 23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 47.95 Hz, 48 Hz, 50 Hz, 59.94 Hz, 60 Hz, 100 Hz, 119.88 Hz, 120 Hz, 144 Hz, 240 Hz • HDCP 1.4, HDCP 2.2, HDCP 2.3* |
| Outputs | 8x SFP |
| Operational Environment | 0–40° Celsius (32–104° F) 10–85% @ 40° (104° F) non-condensing humidity |
| Power Supply | 120–240VA, 1.5A–0.8A |
| Power Consumption | 40W |
| Dimensions | 177mm × 222mm × 44mm 7” × 8.75” × 1.7” ½ Rack |
