Captivate Series

2.0" system depth
Easy Setup
Native HD and 4K Resolutions
100K Lifetime
TAA Compliant
The all-in-one display for effortless installation in meeting spaces. Now in 4K!

The ultimate all-in-one display that’s easy to use and now is available with turnkey installation from Nanolumens.

Turn-Key Solution
All-in-one solution combining display, mount, and remote control into one easy to install unit.
HD and 4K Resolutions
Simple 16:9 formats range from 1080p up to full 4K UHD.
Perfectly Tailored Sizes
Four unique sizes ranging from 120-180” to select the perfect size for your environment. Now available in 120”, 150” and 180” in full HD resolution and 165” in full 4K UHD.
Easy Integration & White Glove Service
Installation is a breeze whether you are installing on a wall or with the optional rolling floor stand. Or let our team handle it for you with our white glove installation service. Now available..
Why Captivate Series

UC&C Ready

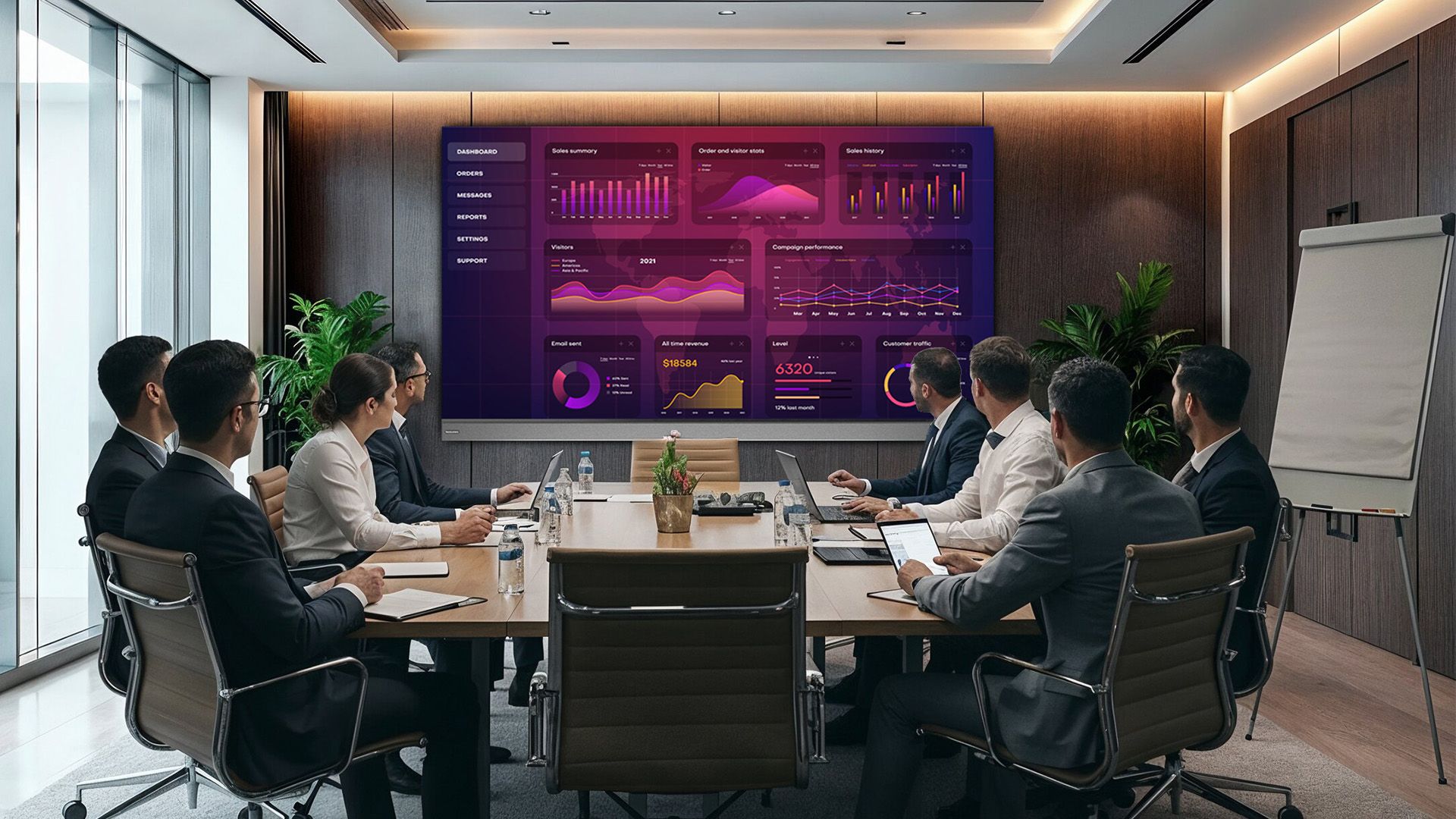

Perfect for huddle spaces or meeting rooms, Captivate series is compatible with UC&C solutions to make meetings more productive.

Nixel to Pixel Warranty

Our Warranty coverage starts with pixel one, ensuring your display is 100% covered.

Local Customer Support

Go forward with confidence knowing that shall an issue arrise our local support team is available day or night ready to spring into action.

Partner Enhanced Solutions

Whether its colloboration or solving a crisis enable your team with one of our bundled technology solutions

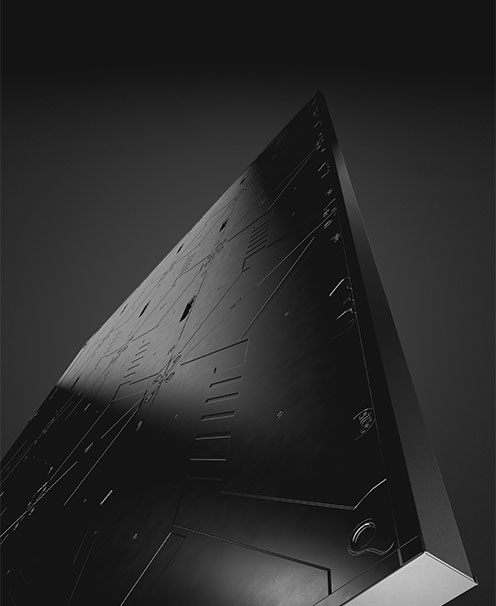

Front serviceable
Handheld remote control
2 year extendable warranty
Cable-less panel connections
100,000 hour lifetime
Interactive Wall Configurator
Design your custom display today.
Captivate 120-HD Captivate 150-HD Captivate 180-HD Captivate 165-UHD
SKU NLID-20004 NLID-20008 NLID-20009 NLID-40000
Architecture SMD RGB COB MiniLED
Display Resolution 1920 x 1080 (HD) 3840 x 2160 (UHD)
Display Diagonal (W X H) 120″ 150″ 180″ 165″
Pixel Pitch 1.3 1.7 2.0 0.9
Module array per “Full HD” 1 x 1
Module Resolution HD UHD
Overall Size (W X H) 105.4 X 64.1 in
2678 x 1630 mm
131.6 x 78.9 in
3344 x 2004 mm
157.8 x 93.6 in
4010 x 2379 mm
144.7 x 85.7 in
3674 x 2175 mm
System Depth 2.0 in / 50.8 mm 1.5 in / 38.1 mm
Weight 255 lbs / 115 kg 365 lbs / 165 kg 474 lbs / 215 kg 441 lbs / 200 kg
Max Brightness (standard) 600 nits 550 nits
Qty 120 VAC Circuits 1 2
Max Power (Watts) 1660 Max
664 Avg
2574 Max
1029 Avg
3000 Max
1350 Avg
2770 Max
1247 Avg
Viewing Angles 160 horizontal
160 vertical
170 horizontal
170 vertical
Curvable No
Serviceability Front
Indoor / Outdoor Indoor
Input Voltage  120/ 208 / 220/ 240 VAC
Input Bit Depth 8-bit Standard (16.7 Million) / Up to 10-bit (>1 Billion)
Lifetime >100,000 hours
Remote Control Yes
Audio Yes
HDMI Inputs 3 (1 external, 2 internal)
Floor Stand Part # NLTK-4000 Special Order
Operating Temperature Operating: 0 to 50C, Non-Condensing Humidity
Learn & Plan
Spec Sheets
Captivate Spec Sheets
Installation Guide
Installation Manual
Related products

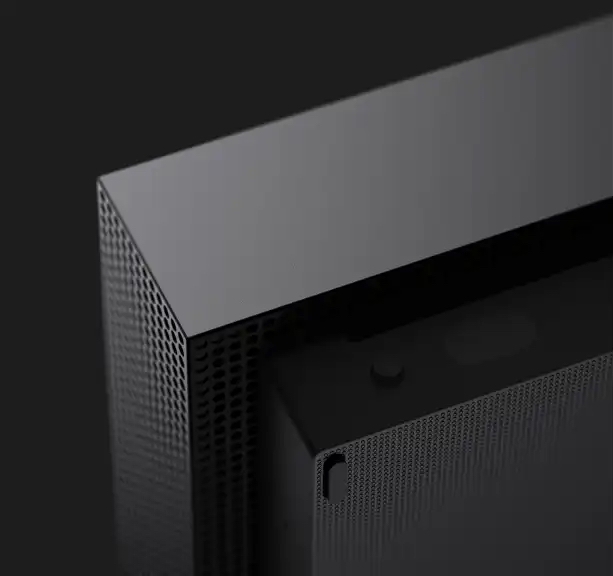

Engage Series

The ultra-slim and simple cabinet-based solution for indoor needs.

Performance Series

The versatile flat display created to light up the outside world.

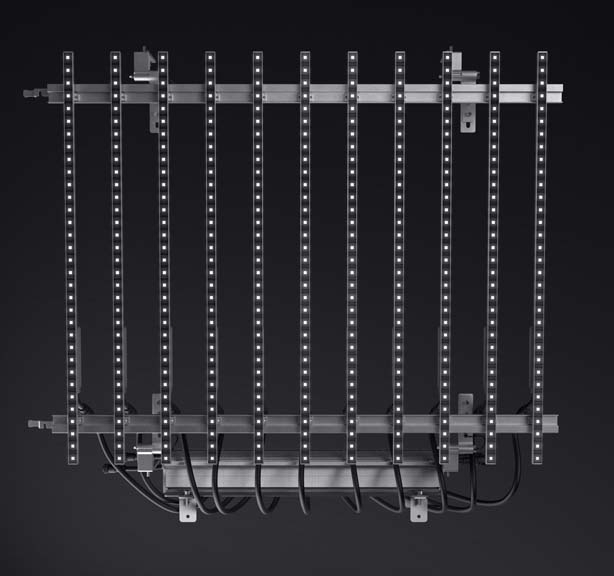

CLRVU Series
