Performance Series

Multiple Formats
3.1-10mm Pixel Pitch
High Brightness
Rapid Deployment
Flat or Curvable (faceted)
LED technology that’s in its element in the outside world.

The versatile flat, outdoor display engineered to withstand extreme weather conditions, with multiple formats that integrate seamlessly into existing architecture.

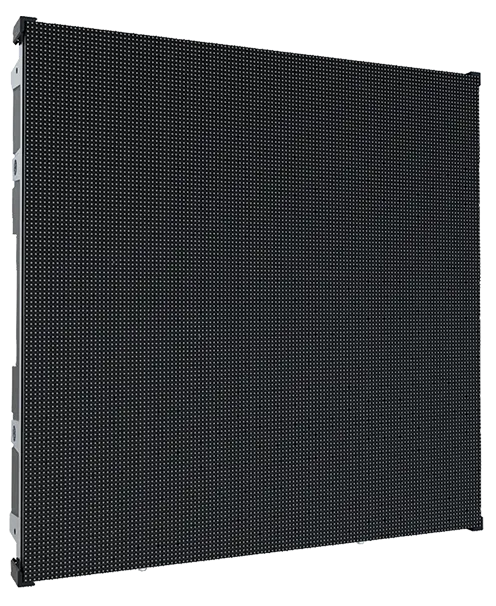

Multiple Formats
Maximize design flexibility with both cabinet and frame-and-skin topologies.
Environment Agnostic
Create displays in any environment with confidence knowing each cabinet is fully IP65 Rated.

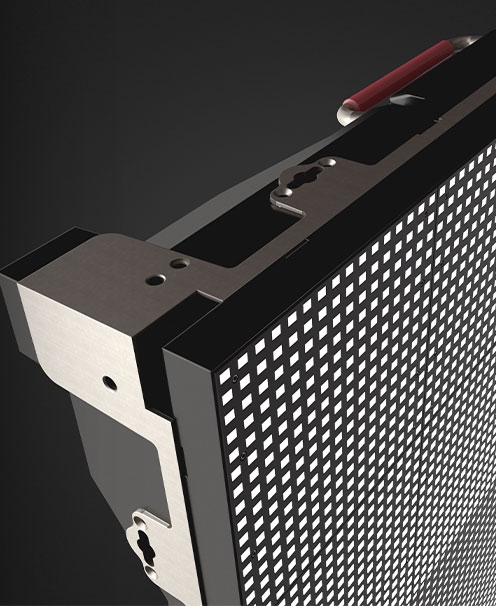

High Quality Componentry
Performance series displays are built with high quality components which carry an industry leading 3 year extendable warranty. No small leters, no addendums.

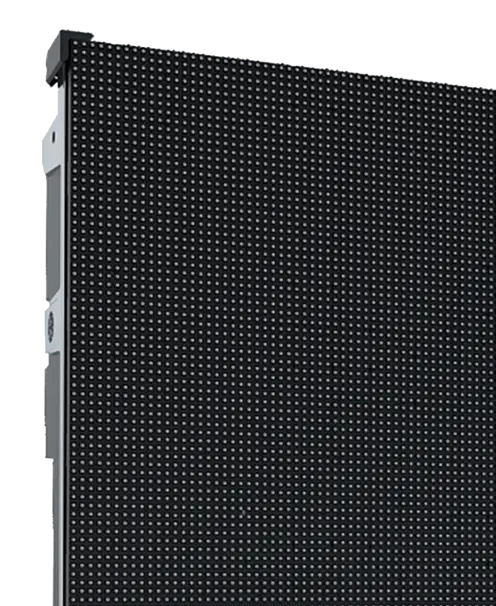

Long-Term Dependability
Our outdoor displays are engineered to withstand extreme weather conditions, ensuring your display lasts and exceeds expectations.
Why Performance Series

Purpose-Built Designs

Nanolumens knows how to design outdoor solutions that stand up to harsh outdoor elements and our Performance Series outdoor displays are IP67 rated, ensuring your display lasts and exceeds expectations.

More Choices

Choose from 500x500 or 250x250 outdoor rated formats, with our highly adaptable frame and skin topology.

Nixel to Pixel Warranty

Our Warranty coverage starts with pixel one and covers your entire display, ensuring 100% coverage and 100% satisfaction.

Stress-Free Projects

Take the guess work out of your project with our team of engineers, project managers, and on-site supervisors that are here to help you design, plan, and deliver your project.
Optimized viewing Angles
Weatherproof design
Realtime Monitoring and Alerts
Long-term Dependability
High Quality Materials
Interactive Wall Configurator
Design your custom display today.
Pixel Pitch 3.1 mm 3.9 mm 5.9 mm 8.3 mm 10.4 mm
Module Size (W X H) 500 x 500mm
19.69 x 19.69 in
Module array per
“Full HD”
12 x 7 15 x 8 23 x 13 32 x 18 40 x 22
Module Resolution 160 x 160 128 x 128 84 x 84 60 x 60 48 x 48
Module Depth 3.75 in / 95.25 mm
Watts /Ft² 61.34 max / 18.40 avg
Weight /Ft² 7.65 lbs / 3.47 kg (includes cabinet)
Max Brightness
6000 nits 5500 nits
Viewing Angles Max 178° horizontal
140° vertical
Viewing Angles L50

140° horizontal
140° vertical
Curvable No
Serviceability Front
Indoor / Outdoor Outdoor
Input Voltage (VAC) 110 / 120/ 208 / 220/ 240 VAC – Single Phase
Output Bit Depth 8-bit Standard (16.7 Million) / Up to 10-bit (>1 Billion)
AWARE® Enabled Upon Request
Lifetime >100,000 hours
Operating Temperature Operating: -10 to 50C
Learn & Plan
Performance Resources
BIM Families
Related products

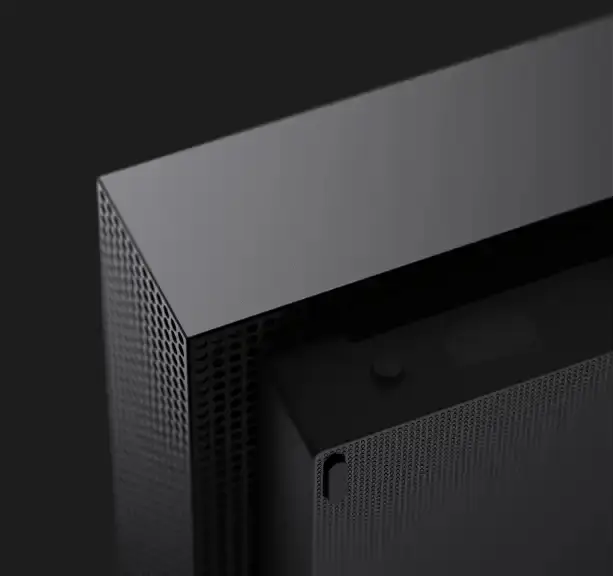

Engage Series

The ultra-slim and simple cabinet-based solution.

CLRVU Series

A mesh display engineered for the perfect view, inside and out.

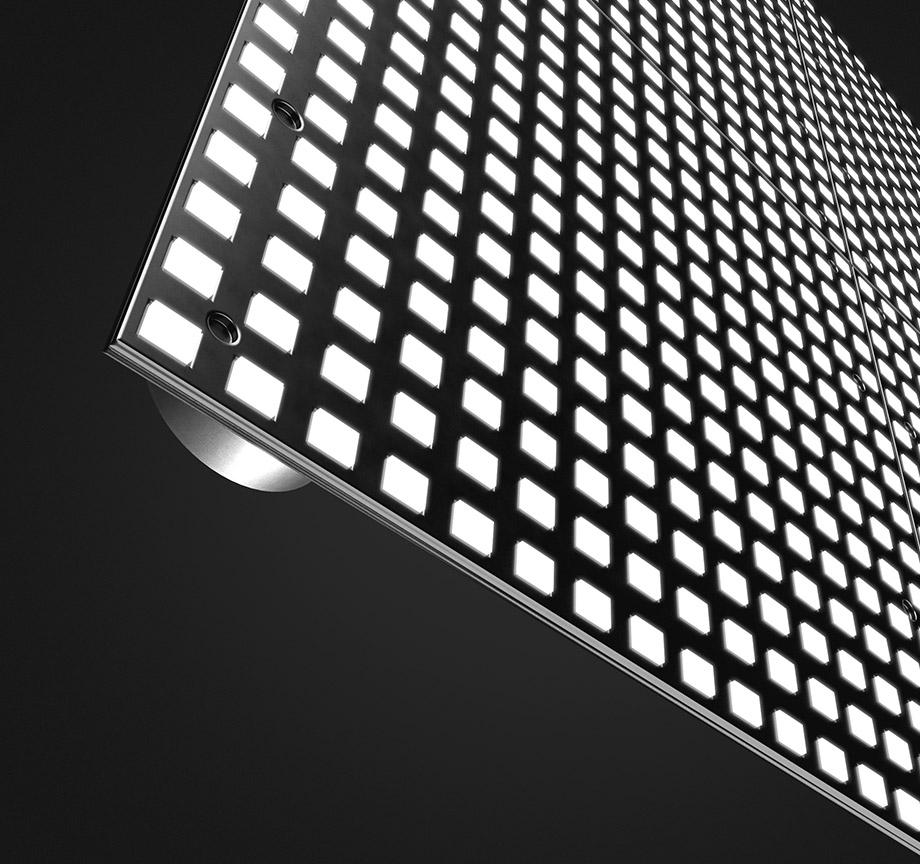

Nixel Series
