Connect and Collaborate Virtually Anywhere

New Ultra-Wide Formats

UCC Optimized

Sized for Different Room Applications

Purpose-Built Solutions

Captivate Series

Clear and Reliable Displays

Enabling a hybrid workforce.

Make your hybrid workspace actually work for everyone.

Complete Solution

UCC bundles from Nanolumens include all you need to connect and collaborate, including processing. These solutions address business pain points and difficult workflows from remote collaboration.

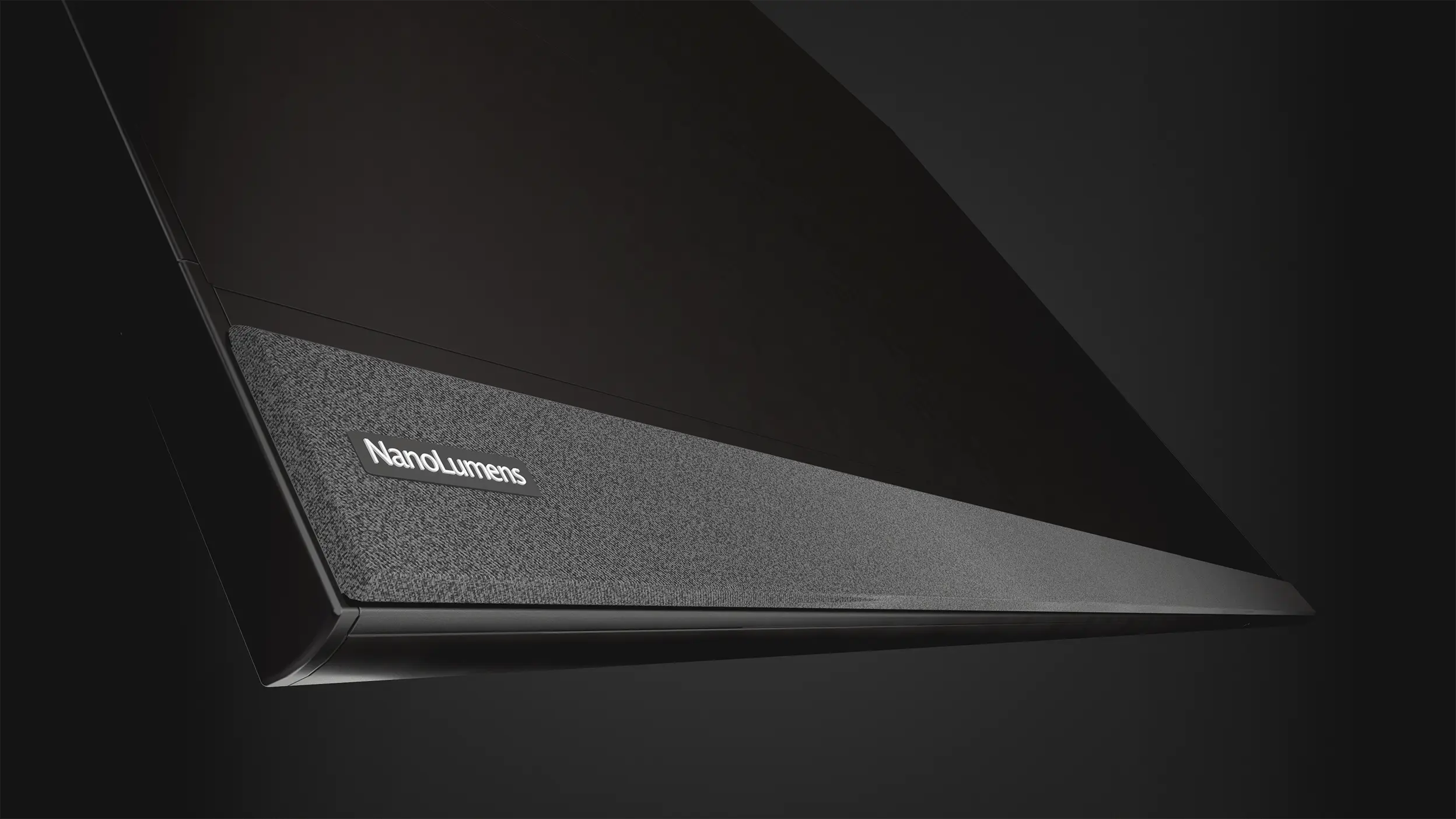

Meeting in a Box

Use Nanolumens' All-In-One display, Captivate, with LogiTech meeting solutions for huddle spaces and meeting rooms. Easy to buy. Easy to use.

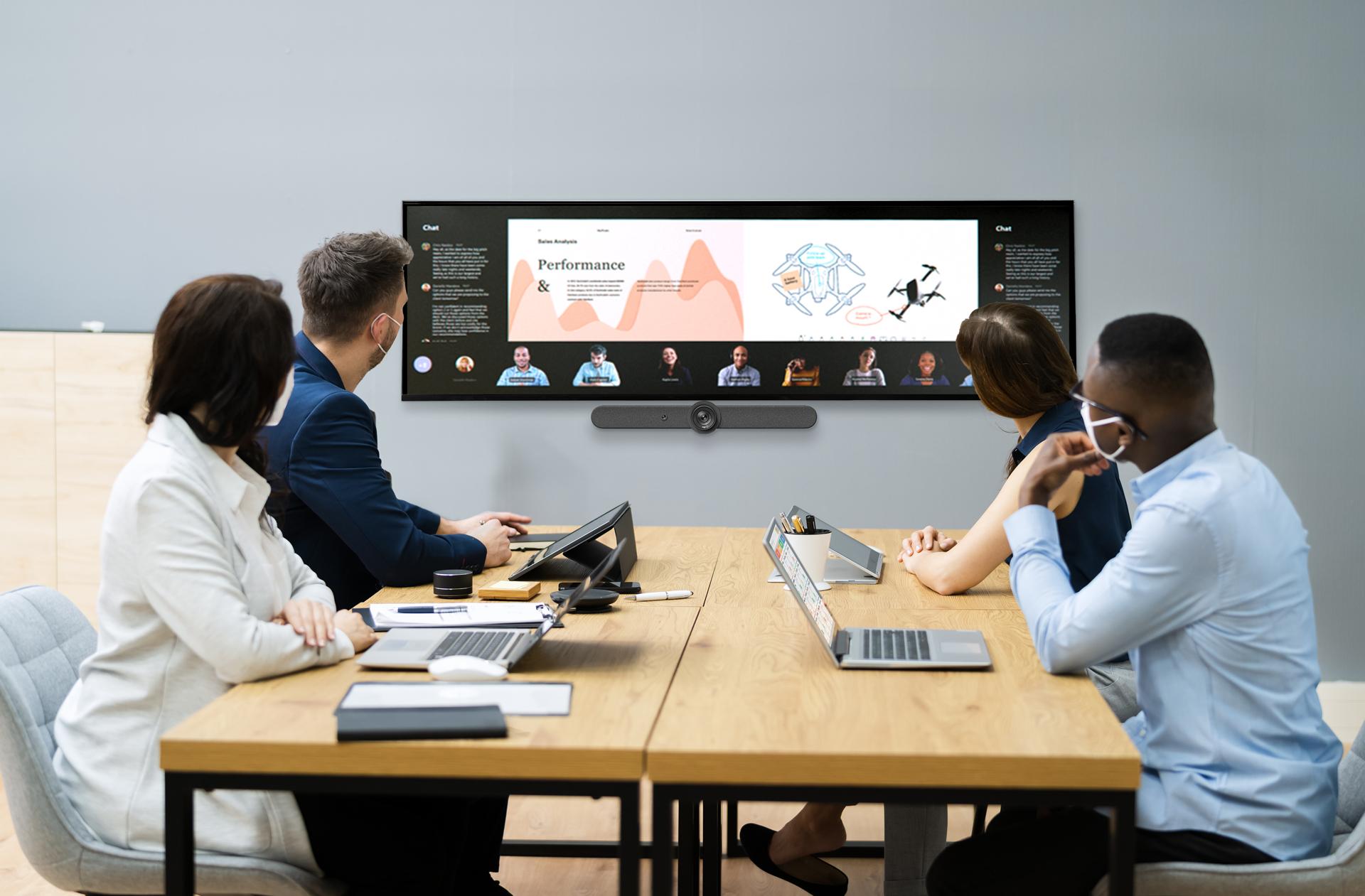

UCC Compatible

Nanolumens' Captivate and Engage NXT displays are optimized to match and enhance different room types and technologies, allowing presenters to collaborate seamlessly with remote colleagues.

Expert Installation

Engage NXT provides the same quality and white glove installation service you've come to expect from Nanolumens. We’re with you every step of the way.

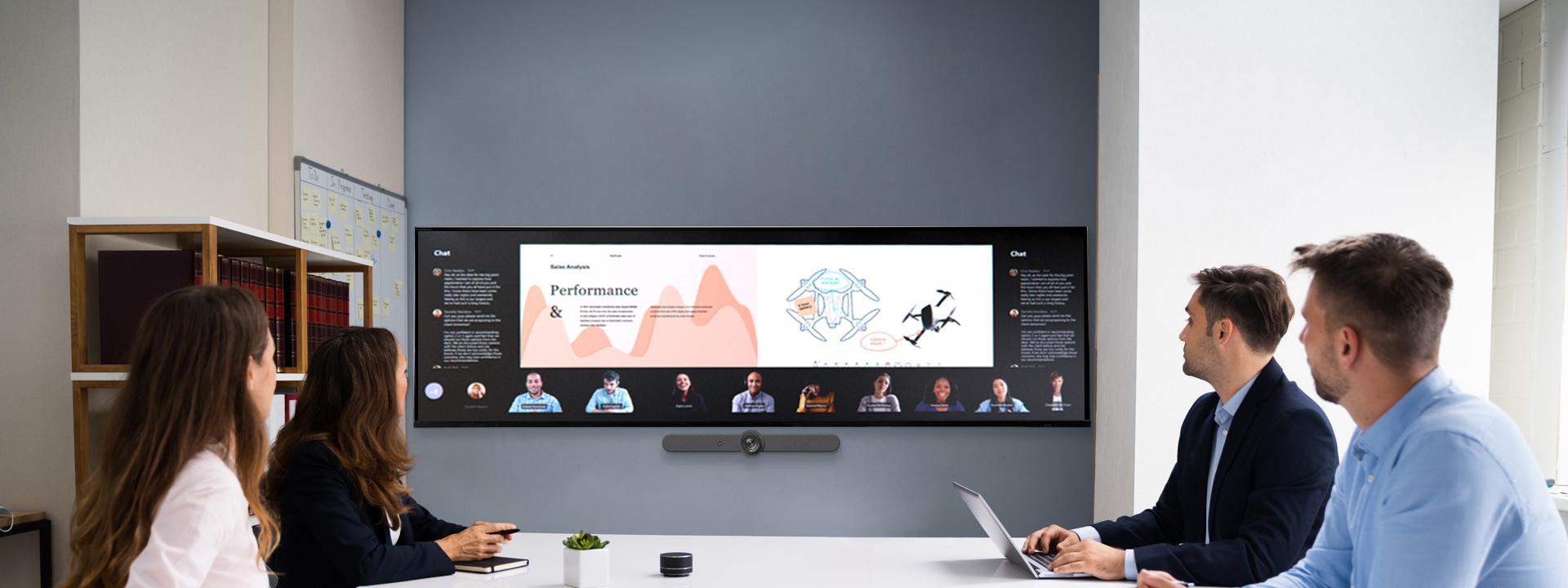

Ultra-Wide Displays with No Gaps

No more tiles for your conference calls. Facilitate teamwork with every meeting software solution for seamless viewing. More pixels (about 33% more), provides a clearer, brighter canvas.

Why Choose UCC Bundles

No Distractions

A seamless canvas provides uninterrupted visuals free from gaps and bezels.

UCC Compatibility

Nanolumens LED displays are designed to work with all major UCC platforms.

Ultra-Wide Display Optimized

For a seamless experience, Nanolumens now offers 21:9 and 32:9 ultra-wide displays.

Easy to Buy

Available through major distribution partners.

Bezel Free 21:9 and 32:9 Formats

Fully Compatible with LogiTech Solutions

Scaled for TEAMS Front Row, Zoom, and Google

Captivate and Engage NXT UCC bundles

Interactive Wall Configurator

Design your custom display today.

Start Building

	Captivate 120-HD	Captivate 150-HD	Captivate 180-HD
SKU	NLID-20004	NLID-20008	NLID-20009
Display Diagonal (W X H)	120″	150″	180″
Pixel Pitch	1.38	1.73	2.08
Overall Size (W X H)	105.44 X 64.18 in 2678 x 1630 mm	131.66 x 78.90 in 3344 x 2004 mm	157.89 x 93.67 in 4010 x 2379 mm
System Depth	2.0 in / 50.8 mm
Display Resolution	1920 x 1080
Weight	255 lbs / 115 kg	365 lbs / 165 kg	474 lbs / 215 kg
Max Brightness (standard)	600 nits
Viewing Angles	160 horizontal 160 vertical
Curvable	No
Serviceability	Front
Indoor / Outdoor	Indoor
Input Voltage	120/ 208 / 220/ 240 VAC
Output Bit Depth	8-bit Standard (16.7 Million) / Up to 10-bit (>1 Billion)
Lifetime	>100,000 hours
Qty 120 VAC Circuits	1	2
Remote Control	Yes
Audio	Yes
HDMI Inputs	3 (1 external, 2 internal)
Max Power (Watts)	2000 Max 900 Avg	3000 Max 1350 Avg	2900 Max 1300 Avg
Floor Stand Part #	NLTK-10009		Special Order
Operating Temperature	Operating: 0 to 50C, Non Condensing Humidity

Pixel Pitch	1.25	1.56	1.87
Module Size (W X H)	3.6 X 1.3 mm 142.36 x 53.65 in	4.2 x 1.68 mm 165.9 x 66.9 in	4.8 x 2.03 mm 189.6 x 80.22 in
Display Resolution	480 x 270	384 x 216	320 x 180
Weight	272 lbs / 123 kg	397 lbs / 180 kg	544 lbs / 247 kg
Max Brightness (standard)	600 nits	800 nits
Viewing Angles	170 horizontal 170 vertical		160 horizontal 160 vertical
Watts/ft	2918 Max / 876 Avg	3546 Max / 1064 Avg	5349 Max / 1605 Avg
Cabinet Count	6W x 4H – 24 Total	7W x 5H – 35 Total	8W x 6H – 48 Total
Refresh Frequency	960-4800 hz
Color Temp	~ 6500K Adjustable
Operating Temp	0-50C
Lifetime	>100,000 hours
Warranty	2 year standard / 3 year extended

Pixel Pitch	1.25	1.56	1.87
Module Size (W X H)	4.8 X 1.3 mm 189.6 x 53.65 in	6.01 x 1.7 mm 236.8 x 66.9 in	7.2 x 2.03 mm 284.09 x 80.22 in
Display Resolution	480 x 270	384 x 216	320 x 180
Weight	363 lbs / 165 kg	567 lbs / 257 kg	816 lbs / 370 kg
Max Brightness (standard)	600 nits	800 nits
Viewing Angles	170 horizontal 170 vertical		160 horizontal 160 vertical
Watts/ft	3891 Max / 1167 Avg	5065 Max / 1520 Avg	8024 Max / 2407 Avg
Cabinet Count	8W x 4H – 32 Total	10W x 5H – 50 Total	12W x 6H – 72 Total
Refresh Frequency	960-4800 hz
Color Temp	~ 6500K Adjustable
Operating Temp	0-50C
Lifetime	>100,000 hours
Warranty	2 year standard / 3 year extended
