Nixel Series
The display that bends — and breaks the rules of what is possible.
Powered by industry-leading technology and custom engineering. Feel free to create outside the box.

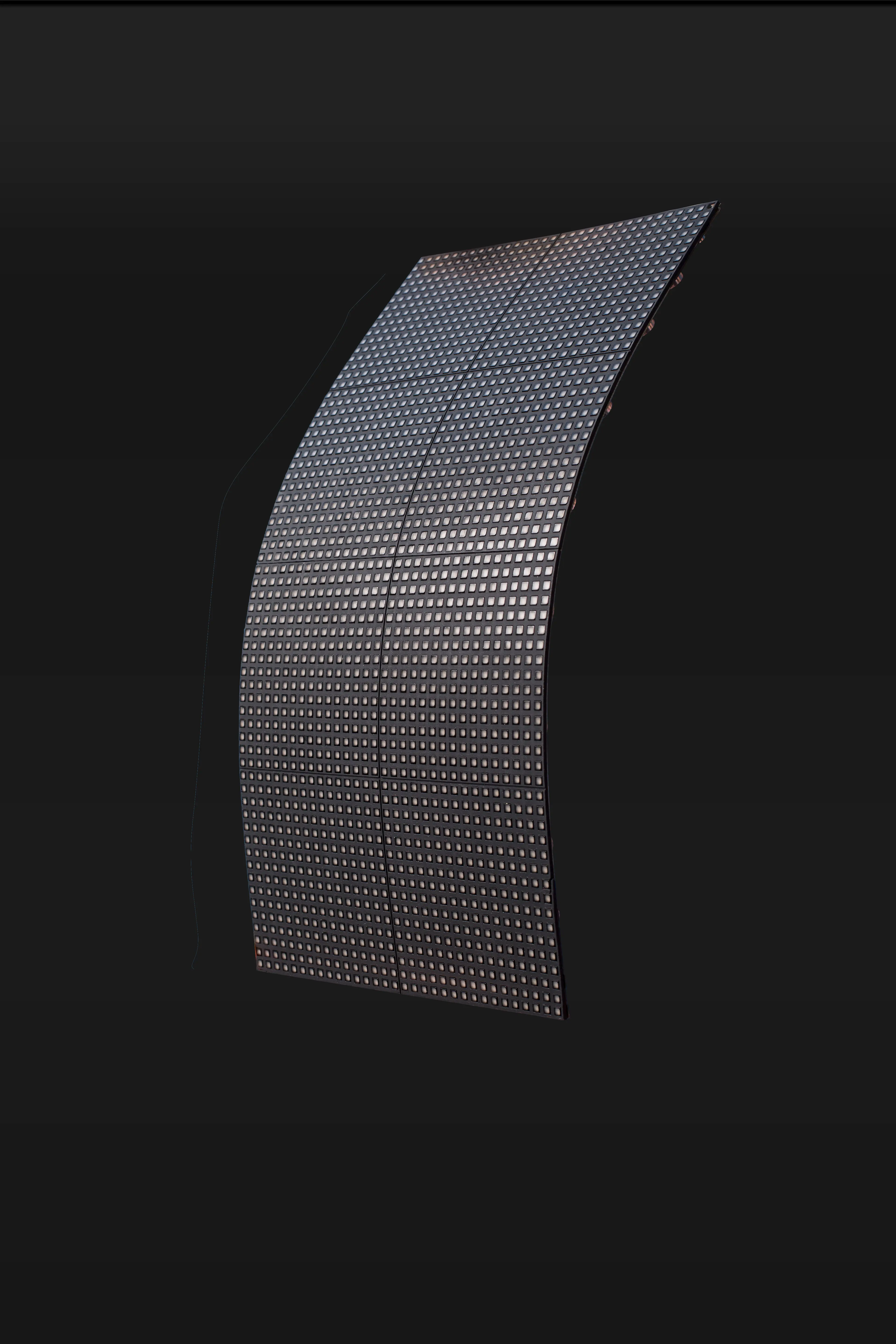

Original True Curve™
Get the patented technology that elevated the industry standard for seamlessly curved displays for 15 years.
Groundbreaking Designs
Create displays that raise the bar, including unique shapes, multi-story designs, and even double-sided screens.
Special Enhancements
Optimize your display to its environment with features like high brightness and humidity-resistant weatherproofing.

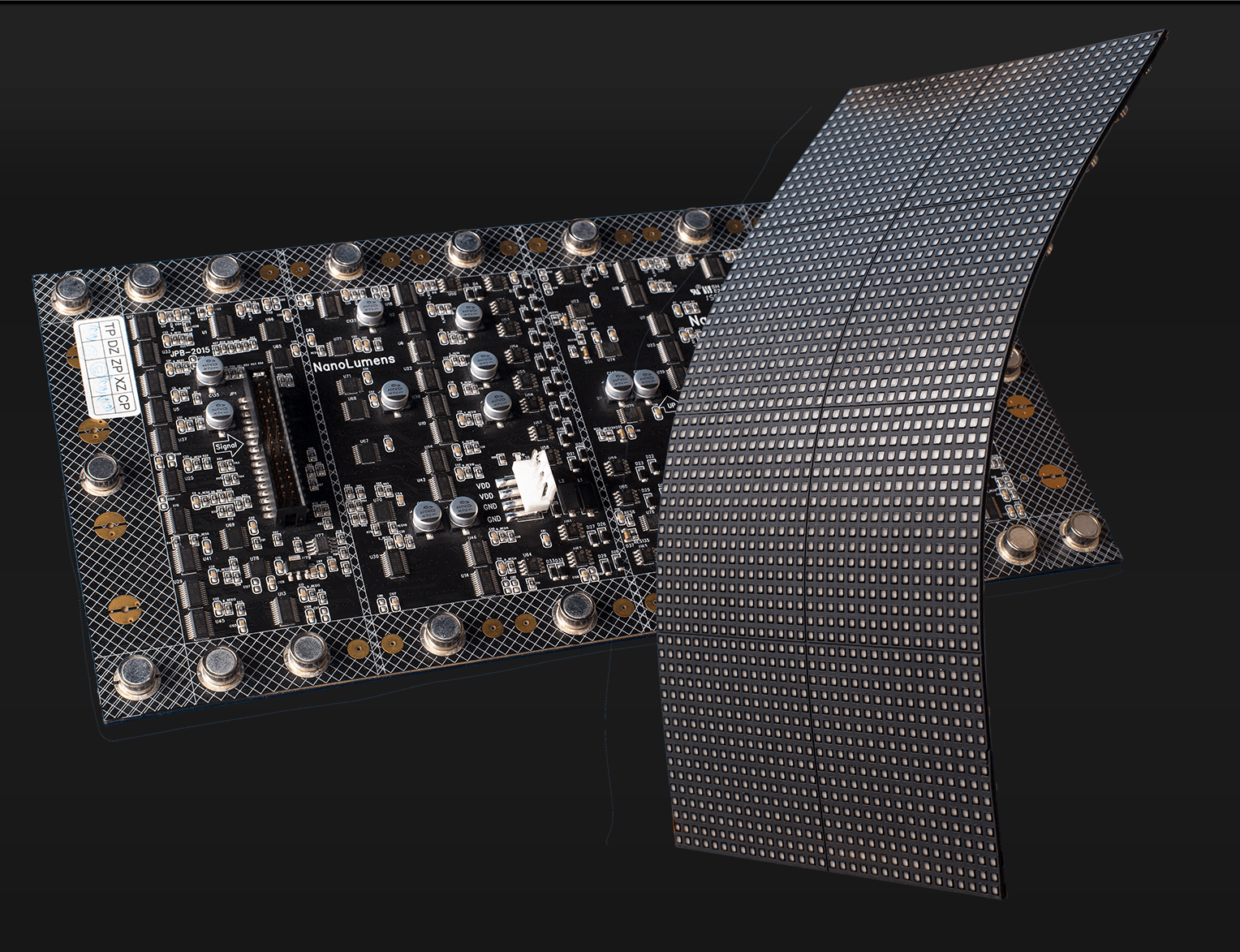

Patented skin-and-frame topology
Deliver the perfect fit — Nixel displays are engineered with fully integrated custom mount designs.
Why Nixel® Series
![](/static/273d5f5b082990671e1e2779167ca1bf/0e22b/Brookfield-Properties-Custom-Boardroom-LED-display-2.jpg)

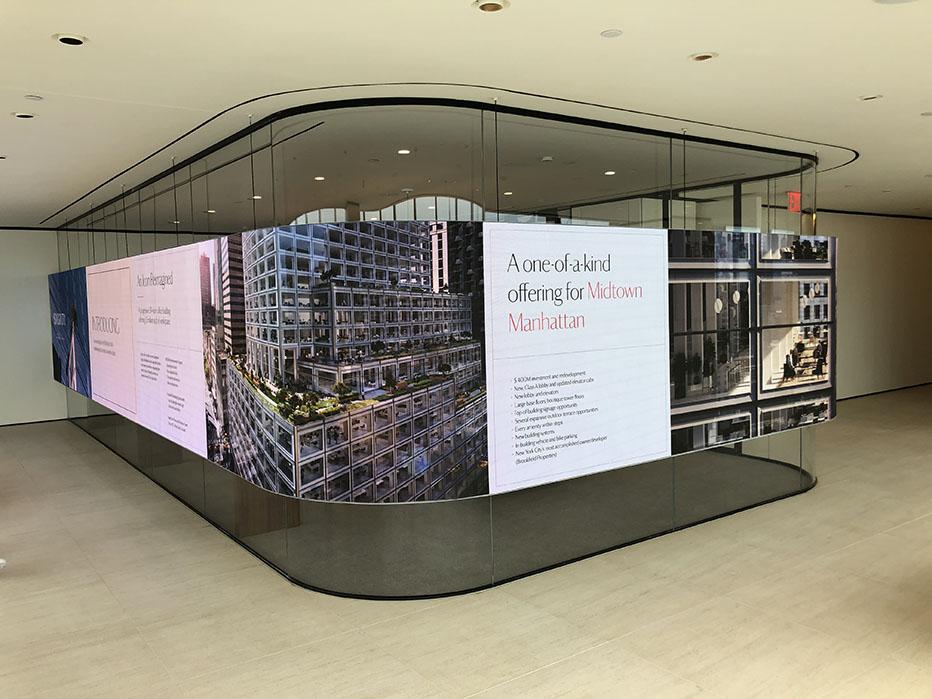

Unforgettable Experiences
Inspire wonder with displays that leverage the best of LED technology to transform your space and captivate your audience.
Uncompromising Quality. True Value.
Build your display to last — we use high-performing materials like gold wiring but work to fit a range of budgets.
Dedicated Professionals
Get industry-leading expertise — our team takes your project personally and has your back every step of the way.
Nixel to Pixel Warranty
Protect your investment with our 6-year warranty, which guarantees repairs, even if it’s a single faulty LED unit.
Mount-Free Installation
Wide Pixel-Pitch Range
TAA-Compliant
Local Customer Support
Megapixel VR Enabled
Nixel® Series Gallery
![atlanta-braves](/static/5936eba2e313feade3d5bbca91a9d56b/8736a/Rectangle-273-23-min.png)

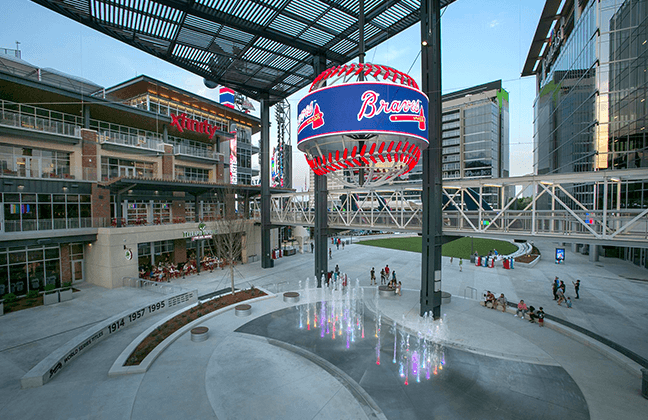

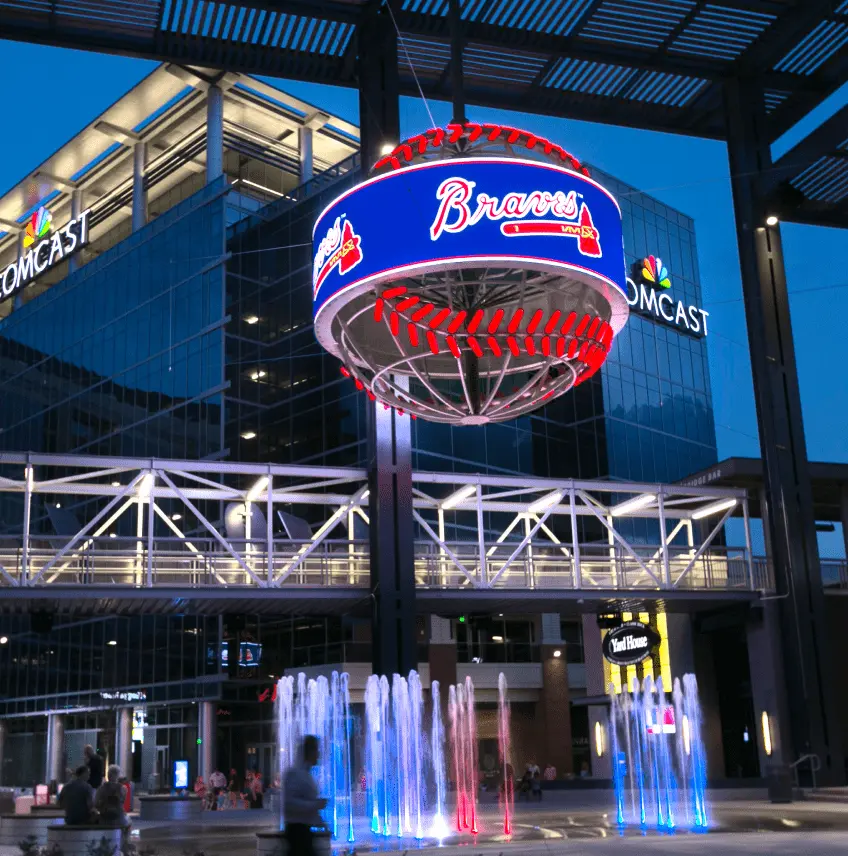

Atlanta Braves
Atlanta, GA
![](/static/756b397bae3440cd3952c097360463b0/21038/BNY-Control-Room-LED-Display.jpg)
BNY War Room
New York, NY
![](/static/5bc8b518e58958f1df796d075dbbf214/43d06/Arizona-State-University-Corner-LED-Display.jpg)
Arizona State University
Tempe, AZ
![](/static/631ba5c872659d18fee3336d4f186dd0/63d44/Verizon-Mosaic-6775x4517-1-scaled.jpg)
Verizon Innovation Hub
Boston, MA
![](/static/7b78d6c09d0cd5631adf57c8fe14a72a/052c7/Ron-Clark-Academy-LED-Ceiling.jpg)
Ron Clark Academy
Atlanta, GA
Pixel Pitch | 0.9mm | 1.2mm | 1.5mm | 1.8mm | 2.5mm | 3.8mm | 4.7mm | 5.4mm | 6.3mm | 9.5mm |
---|---|---|---|---|---|---|---|---|---|---|
Nixel™ Module Size (W X H) |
300 x 168.8 mm 11.8 x 6.6 in |
240 x 150 mm 9.4 x 5.9 in |
304.8 mm x 152.4 12.0 x 6.0 in |
|||||||
Nixel™ Array Per “Full HD” |
6×10 | 8×8 | 10×10 | 12×12 | 20×18 | 24×27 | 30×34 | 34×38 | 40×45 | 60×68 |
Nixel™ Resolution | 320×180 | 240×135 | 192×108 | 160×90 | 96×60 | 80×40 | 64×32 | 56×28 | 48×24 | 32×16 |
Module Depth | 104.9 mm / 4.1 in | |||||||||
Watts /Ft² | 54.8 max 17.6 avg |
67.8 max 20.4 avg |
69.7 max 20.4 avg |
69.7 Max 17.1 Avg |
69.7 max 20.9 avg |
44.0 max 13.2 avg |
48.0 max 13.2 avg |
42.0 max 12.6 avg |
41.8 max 12.6 avg |
41.8 max 12.5 avg |
Weight /Ft² | 2.3 kg / 5.1 lbs | 2.4 kg / 5.5 lbs | ||||||||
Max Brightness (standard) |
640 nits | 700 nits | 750 nits | 800 nits | 980 nits | 1190 nits | 1800 nits | |||
Viewing Angles Max | 178° horizontal / 178° vertical | |||||||||
Viewing Angles L50 | 170° horizontal 165° vertical | 170° horizontal 170° vertical | 160° horizontal / 160° vertical | 160° horizontal 140° vertical | 160° horizontal 160° vertical | 170° horizontal / 160° vertical | ||||
Minimum Radius | 1829 mm / 72 in | 1219 mm / 48 in | 915 mm / 36 in | |||||||
Serviceability | Front | |||||||||
Indoor / Outdoor | Indoor | |||||||||
Input Voltage (VAC) |
110 / 120 / 208 / 220 / 240 VAC – Single Phase | |||||||||
Input Bit Depth | 8-bit Standard (16.7 Million) / Up to 10-bit (>1 Billion) | |||||||||
AWARE® | Enabled Upon Request | |||||||||
Lifetime | >100,000 hours | Operating Temperature | Operating: 0 to 50C, Non Condensing Humidity |
Learn & Plan
Related products
![](/static/ecd962a54a8836ac1dc502811e04a740/2cd9d/Rectangle-265-min-2.png)

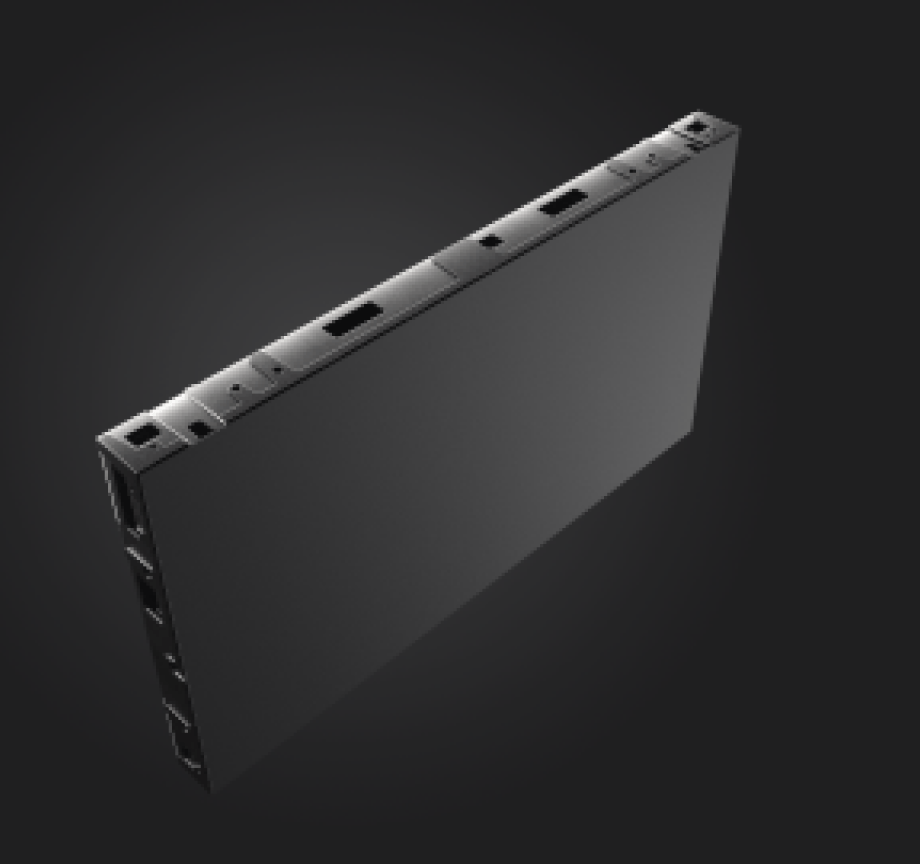

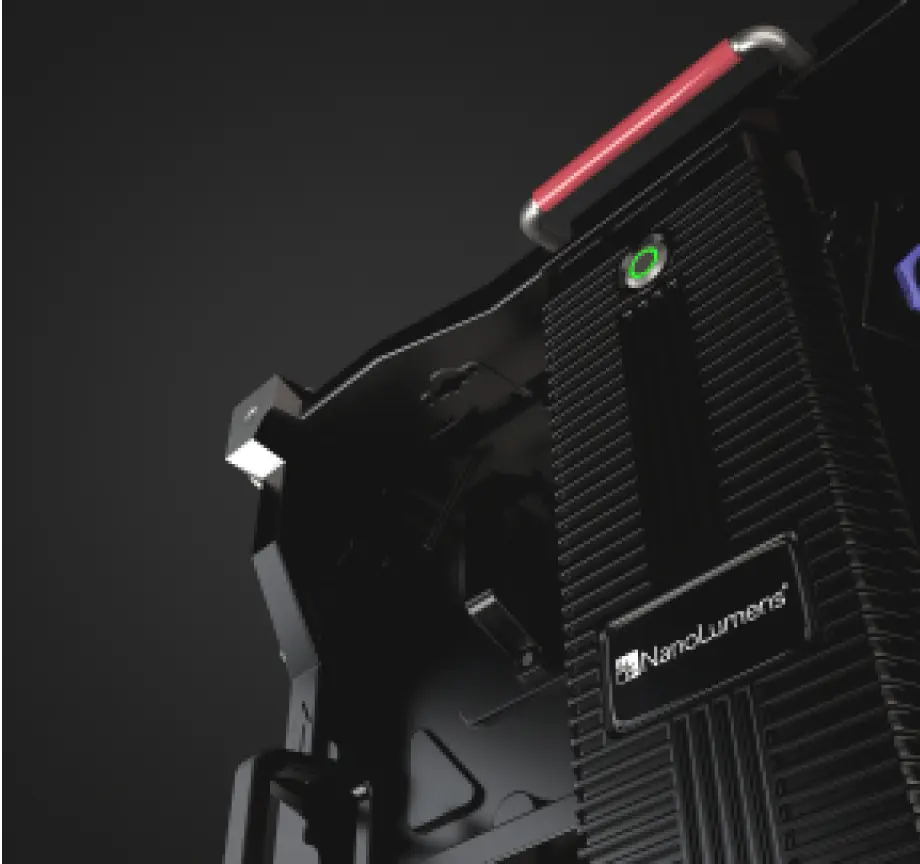

Performance Series
