Engage Pro

Next-Era Performance
COB Mini LED
0.7 - 1.25mm Pixel Pitch
16:9 Format
Ultra-High Contrast
TAA Compliant
100K Lifetime
Next-Era Performance

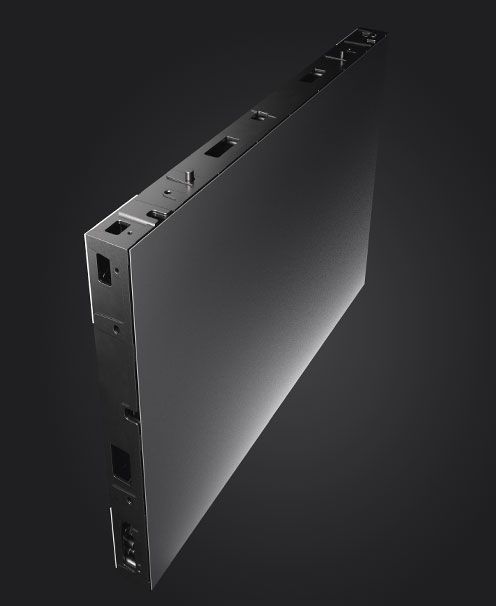

Our newest cabinet based display innovation. Built on the same platform as our renowned Engage Series, Engage Pro utilizes flip-chip COB MiniLED technology to drive ultra high contrast and high performance visuals to the Engage Series.

Incredible Blacks
COB Mini LED architecture delivers over 4x more contrast than traditional SMD LED.
Reject Reflections
The robust COB coating has been designed to minimize reflections enabling specification in brighter environments.
Ultra-Fine Pitch
From super-fine utility detail to sharp visual detail, the Engage Pro ultra-fine pitch display ensures your data is clear and on point.
TAA Compliant
Engage Series displays are TAA compliant, making them the perfect solution for secure environments.
Why Engage Series

MiniLED

Unleash a new era of brilliance with Engage Pro MiniLED (COB), where precision meets performance.

Greener & Brighter

Engage Pro employs the latest technologies to deliver higher brightness and lower power consumption.

Ultra Fine Pitches

Available if pitches from 0.7mm to 1.25mm, Engage Pro is the perfect solution for mission critical applications that require the highest resolutions.

16:9 Format

Take the complexity out of content creation and video wall design with our simple 16:9 format cabinets.
MiniLED
Greener & Brighter
Ultra Fine Pitches
16:9 Format
Interactive Wall Configurator
Design your custom display today.
Pixel Pitch 0.7 mm 0.9 mm 1.25 mm
Module Size(W X H) 600.0 x 337.5 mm
23.6 x 13.2 in
Module Array Per “Full HD” 3 x 3
Module Resolution 768 x 432 640 x 360 480 × 270
Module Depth 50 mm / 1.97 in
Watts / Sq Ft² (Calibrated) 42.29 Max / 12.29 Avg 44.98 Max / 13.50 Avg 41.36 Max / 12.41 Avg
Weight / Sq Ft² 2.34 kg / 5.2 lbs
Max Brightness (Calibrated) 800 nits
Viewing Angle Max 178° horizontal / 178° vertical
Viewing Angle L50

160° horizontal / 160° vertical
Curvable No
Serviceability Front
Indoor / Outdoor Indoor
Input Voltage 110 / 120 / 208 / 220/ 240 VAC – Single Phase
Output Bit Depth 8-bit Standard (16.7 Million) / Up to 10-bit (>1 Billion)
Lifetime >100,000 hours
Warranty 6 years
Learn & Plan
Engage Resources
bim
BIM Families
Engage Pro Spec Sheet
Related products

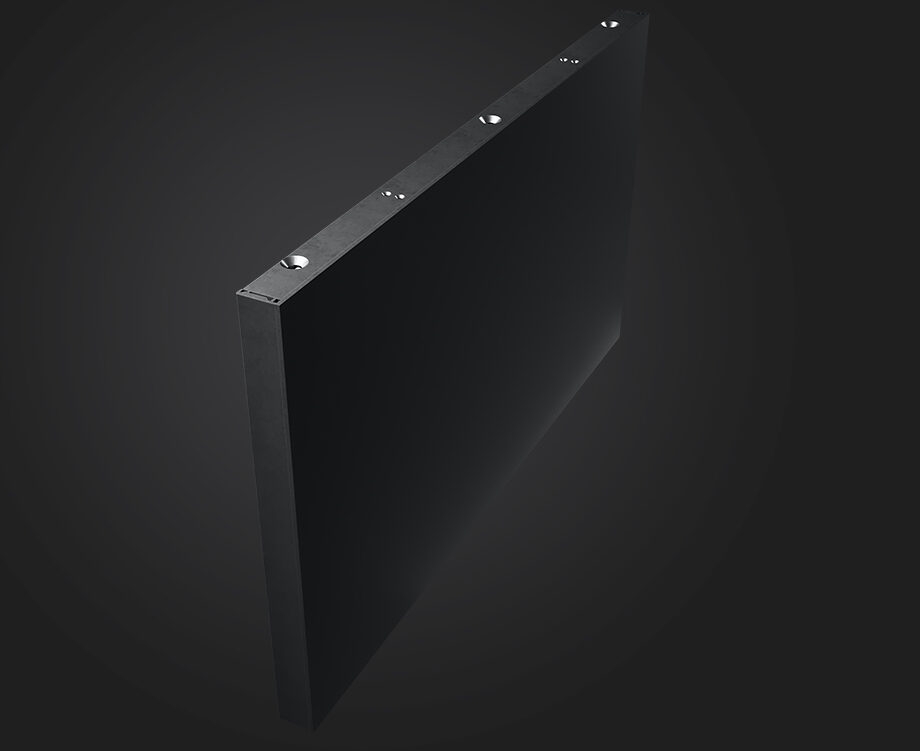

Performance Series
