NXT Series
Entry-Level LED Display TechnologyValue without sacrifice
When organizations require impactful, large-format, indoor digital signage or meeting room displays on a budget, Nanolumens’ entry-level NXT Series direct view LED video wall displays are the wise choice. These versatile displays delivering stunning image quality, reliable performance, and streamlined installation at unmatched value.
The indoor cabinet display that delivers narrow pixel pitch for up-close-and-personal viewing at its absolute finest.
Legendary Quality
Value doesn’t have to mean low quality. Our NXT Series displays are built with Nanolumens’ proven performance and reliability.

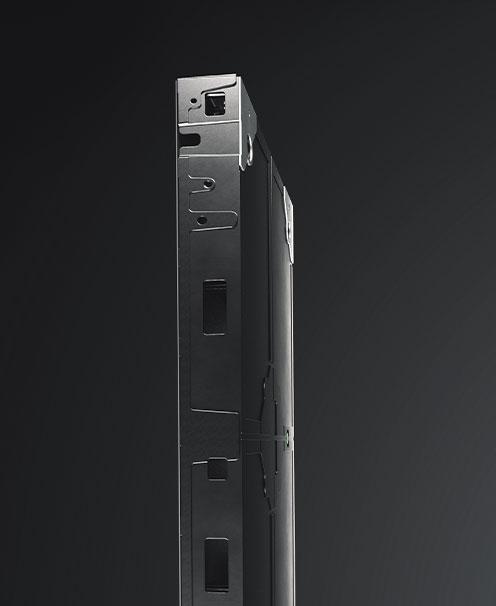

Cable-less
NXT LED modules are cable-less making replacement as easy as snap in and out, saving time and money.

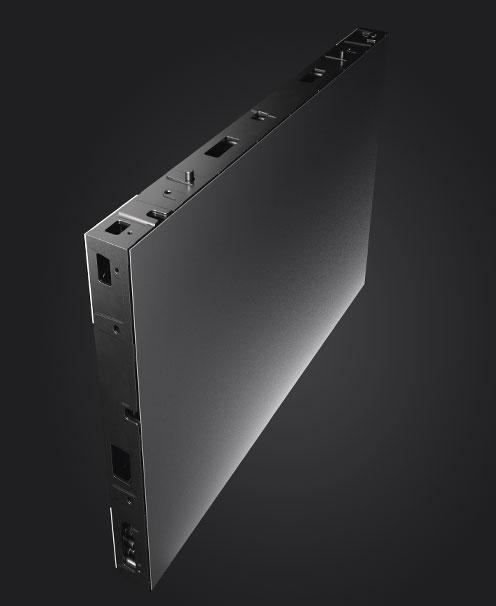

16:9 Standard Format
Take the complexity out of content creation and video wall design with our simple 16:9 format cabinets ideal for traditional Full HD or 4K resolution content.

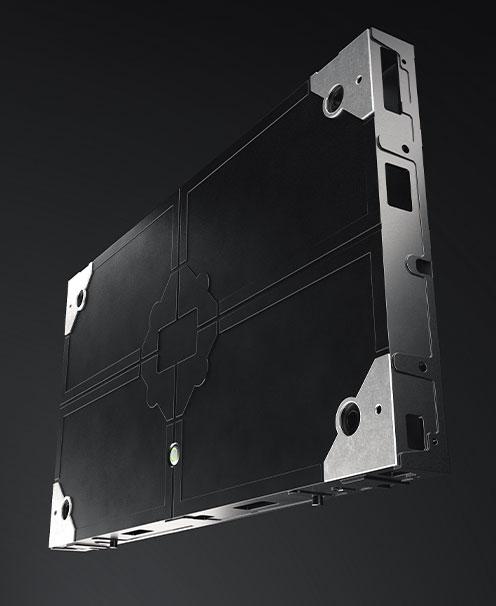

Versatile Mounting
Mounting NXT video wall displays is simple as COB models are compatible with popular mount providers and SMD models require no third-party mounts at all.
Why NXT Series
Affordable High Performance
The Nanolumens NXT Series offers both COB and SMD technology options, giving you the flexibility to choose the right fit for your performance needs. Whether you prioritize ultra-durability and close-viewing performance with COB, or the proven versatility of SMD, NXT delivers tailored display solutions without compromise.
NIXEL™ to Pixel Warranty
Your display is engineered to pass the ultimate test: time. We use high-performing materials to ensure your display is a worthwhile investment. Our warranty
coverage starts pixel one, ensuring your display is covered 100% from our Atlanta, Georgia area headquarters.
American Made
NXT Series is compliant with U.S. Trade Agreements Act (TAA) requirements. The displays are designed, engineered, assembled, supported and serviced in the United States.
Stress-Free Structure
To facilitate low-impact installation that speeds deployment, SMD LED model displays require no additional mounting infrastructure. To ensure miniLED COB video wall flatness, the displays are compatible with mounting solutions from leading mount providers.
A Breakthrough in Affordable, High Performance Visual Solutions
NIXEL™ to Pixel Warranty
American Made
Stress-Free Structure
| Pixel Pitch | 0.93 mm | 1.2 mm | 1.5 mm |
|---|---|---|---|
| Size (W x H) {1} | 600.0 x 337.5 mm (23.62 x 13.29 in) | ||
| Resolution | 640 x 360 | 480 x 270 | 384 x 216 |
| Depth {2} | 31.5 mm / 1.25″ | ||
| Watts / ft² | 47 Max / 15.4 Avg | 39 Max / 12.88 Avg | 42 Max / 13.8 Avg |
| Weight / ft² | 3.81 kg / 8.40 lbs | ||
| Contrast | 6000:1 | ||
| Max Brightness (standard) | 800 Nits | ||
| Viewing Angle Max {3} | 178° horz / 178° vert | ||
| Viewing Angle L50 {3} | 168° Horz / 163° Vert | ||
| Curveable | Faceted | ||
| Mount Required? | Yes | ||
| Serviceability | Front | ||
| Indoor / Outdoor | Indoor | ||
| Glue-on-Board (GOB) Ruggedization Option | Yes | ||
| Input Voltage (VAC) | 110/120/208/220/240 VAC – Single Phase | ||
| Output Bit Depth {4} | 8-bit Standard (16.7M) / Up to 10-bit (>1B) | ||
| Lifetime | >100,000 hours | ||
| Warranty | 2 yr standard / 3 yr extended | ||
