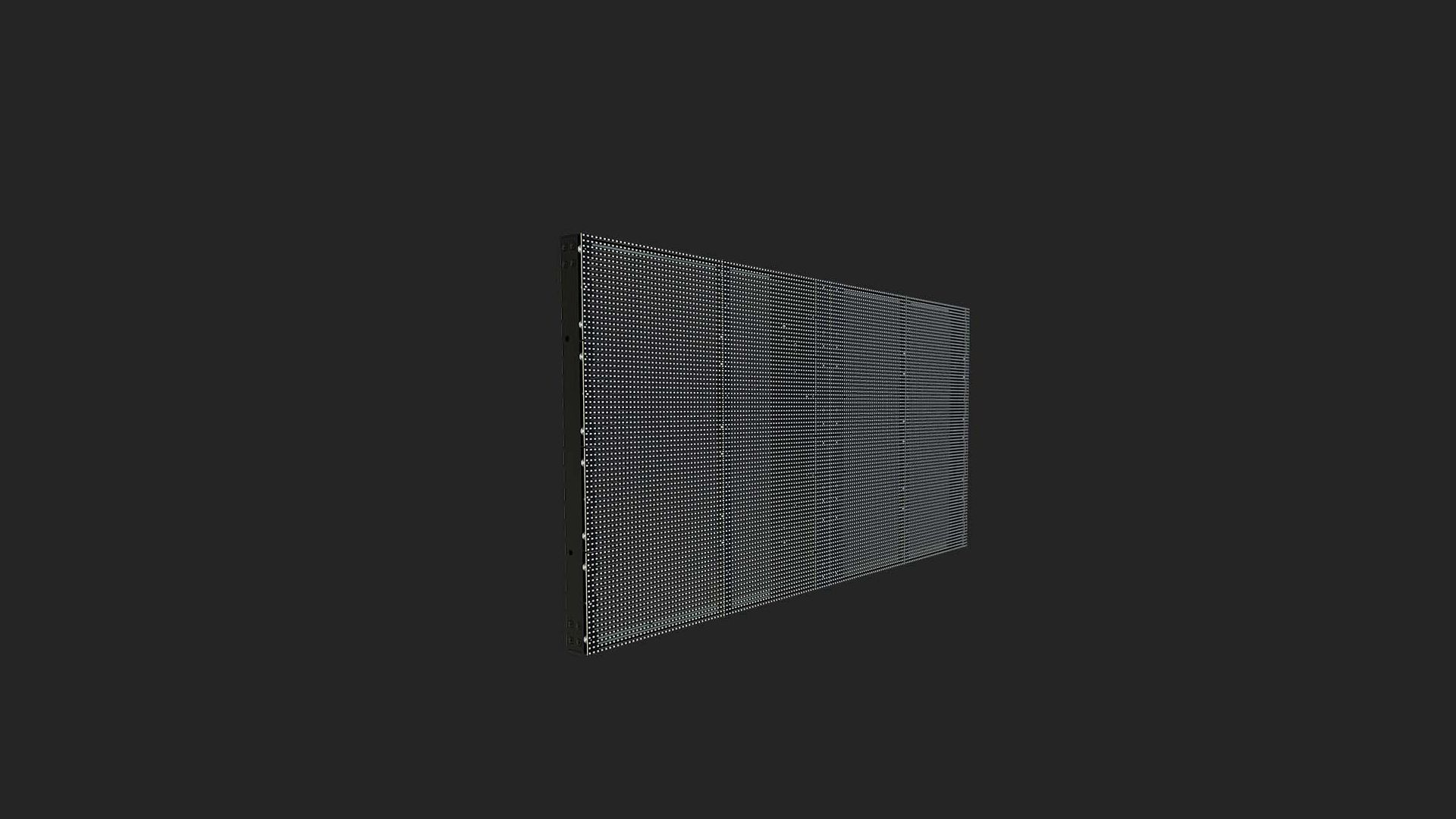

CLR Series
Clear, creative impact.
Indoor and outdoor, transparent mesh technology delivered in a wide range of pitches for high-impact visuals.
High Brightness
High brightness (3000+ and 6000 nits), elevates your creativity and messaging to be visible in demanding spaces.
Variable Transparency
Both CLRVU and CLRVision use transparent mesh technology delivered in a wide range of pixel pitches from 3.9 - 25mm, allowing your displays to have high-impact views in any space with minimal effect on the view from the other side.

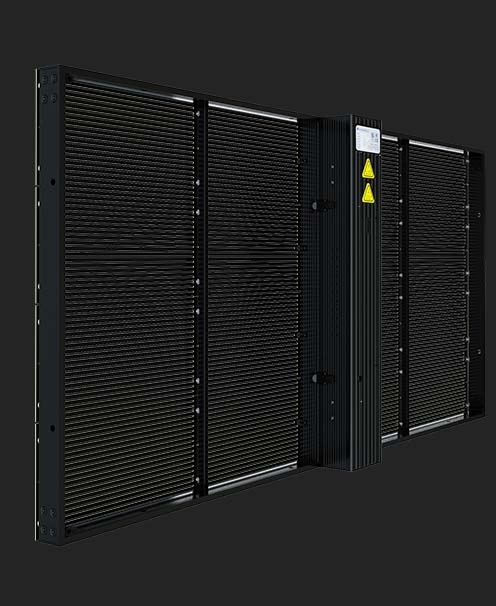

Simplistic Service
Each individual LED strip can be easly serviced from the front or rear making service no hassle.
High Quality Components
High quality components ensure that your massive statement is as clear today as in the years to come.
Why CLR Series
Dedicated Professionals
Every Nanolumens installation has a dedicated team to install and manage your systems to ensure every detail is thought of and planned.
Local Customer Support
Go forward with confidence knowing that shall an issue arise, our local support team is available day or night ready to spring into action.
Nixel to Pixel Warranty
Our Warranty coverage starts with pixel one, ensuring your display is covered 100%.
3.9 - 25mm Pixel Pitch
Front and rear serviceable
3 year extendable warranty
Sleek Tileable Design
Interactive Wall Configurator
Design your custom display today.

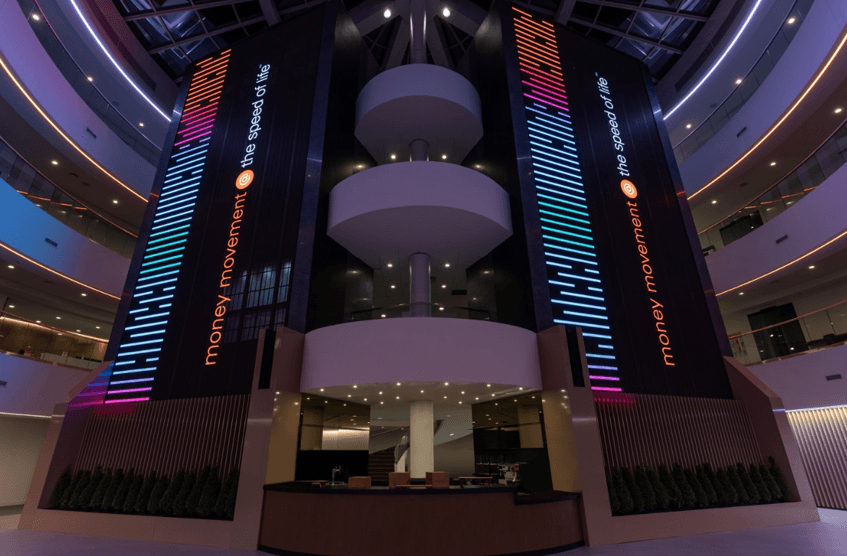

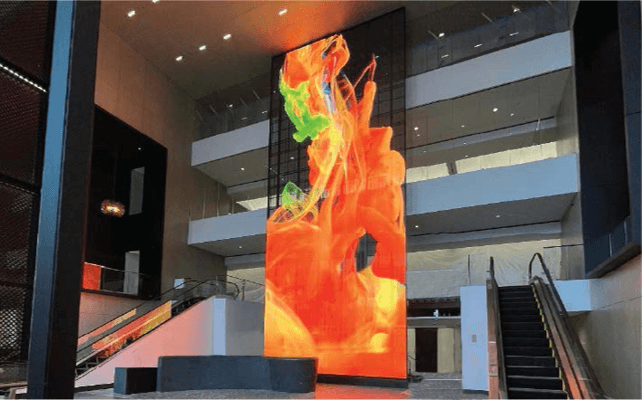

CLR Series Gallery
TK Elevator
Atlanta, GA
Pixel Pitch | 3.9 x 7.8 | 6.2 x 6.2 | 7.8 x 7.8 | 10.4 x 10.4 | ||
---|---|---|---|---|---|---|
Transparency
43% |
32% |
43% |
54% |
| ||
Unit Size (W X H) | 39.37 x 19.68 in 1,000 x 500 mm |
|||||
Unit Resolution | 256 x 64 | 160 x 80 | 128 x 64 | 96 x 48 | ||
Watts/ft^2 | 51.1 Max 15.3 Avg |
51.1 Max 15.3 Avg |
51.1 Max 15.3 Avg |
51.1 Max 15.3 Avg |
Weight/ft^2 | 1.49 kg 3.28 Ibs |
Max Brightness (standard) | 3,000 nits | 2,000 nits | 2,000 nits | 4,000 nits | ||
Viewing Angle Max | 160h 140v |
Viewing Angle L50 | 140h 140v |
|||
Serviceability | Front and Rear | |||||
Indoor/Outdoor | Indoor Only | |||||
Input Voltage (VAC) | 110/120/208/220/240 VAC – Single Phase | |||||
Output Bit Depth | 8-bit Standard (16.7 Million) / Up to 10-bit (>1 Billion) | |||||
Lifetime | >100,000 Hours | |||||
Warranty | 3 year standard/6 Year Extended |
