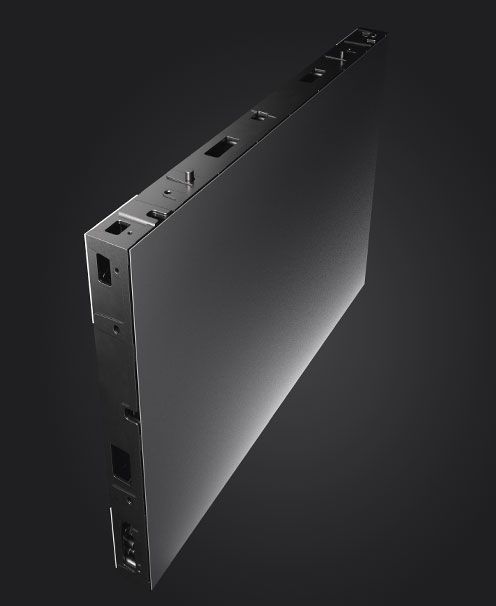

Hero

Engage NXT

16:9 Format
1.25 - 2.5mm Pixel Pitch
100K Lifetime
TAA-Compliant
No Mount Needed
Front Serviceable
Value without sacrifice

The indoor cabinet display that delivers narrow pixel pitch for up-close-and-personal viewing at its absolute finest.

16:9 Standard Format
Take the complexity out of content creation and video wall design with our simple 16:9 format cabinets.
Cable-less Interconnects
Engage NXT LED modules are cable-less making replacement as easy as snap in and out saving in time and money.
No Mounts Required
Nanolumens’ Engage NXT displays do not require a third party mount, taking the cost and complexity out of the installation.
Legendary Quality
Value doesn’t have to mean low quality. Our Engage NXT displays are built with Nanolumens performance and quality.
Why Engage Series

Legendary Quality

Value doesn’t have to mean low quality. Our Engage NXT displays are built with Nanolumens performance and quality.

Cable-less Interconnects

Engage NXT LED modules are cable-less making replacement as easy as a snap in and out, saving in time and money.

16:9 Format

Take the complexity out of content creation and video wall design with our simple 16:9 format cabinets.

No Mounts Required

Nanolumens’ Engage NXT displays do not require a third party mount, taking the cost and complexity out of the installation.
Legendary Quality
Cable-less Interconnects
16:9 Format
No Mounts Required
Interactive Wall Configurator
Design your custom display today.
Pixel Pitch 1.2 mm 1.5 mm 1.8 mm 2.5 mm
Module Size(W X H) 600.0 x 337.5 mm
23.6 x 13.2 in
Module Array Per “Full HD” 4 x 4 5 x 5 6 x 6 8 x 8
Module Resolution 480 × 270 384 × 216 320 × 180 240 × 135
Module Depth 50 mm / 1.97 in
Watts / Sq Ft² 55.7 Max / 16.7 Avg 46.4 Max / 13.9 Avg 51.1 Max / 15.3 Avg 55.7 Max / 16.7 Avg
Weight / Sq Ft² 2.3 kg / 5.2 lbs
Max Brightness (standard) 600 nits 700 nits 800 nits 1000 nits
Viewing Angle Max 178° horizontal / 178° vertical
Viewing Angle L50

170° horizontal / 170° vertical 160° horizontal / 160° vertical
Curvable No
Serviceability Front
Indoor / Outdoor Indoor
Input Voltage 110 / 120 / 208 / 220/ 240 VAC – Single Phase
Output Bit Depth 8-bit Standard (16.7 Million) / Up to 10-bit (>1 Billion)
Lifetime >100,000 hours
Warranty 2 year standard / 3 year extended
Learn & Plan
Engage Resources
bim
BIM Families
Engage NXT Spec Sheet
Related products

Performance Series

The versatile flat display created to light up the outside world.

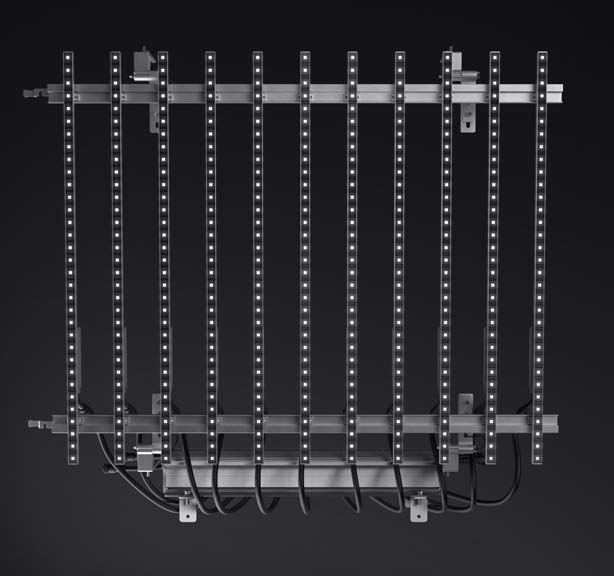

CLRVU Series

A mesh display engineered for the perfect view, inside and out.

Captivate Series

The ultimate all-in-one display that’s easy to install and even easier to use.

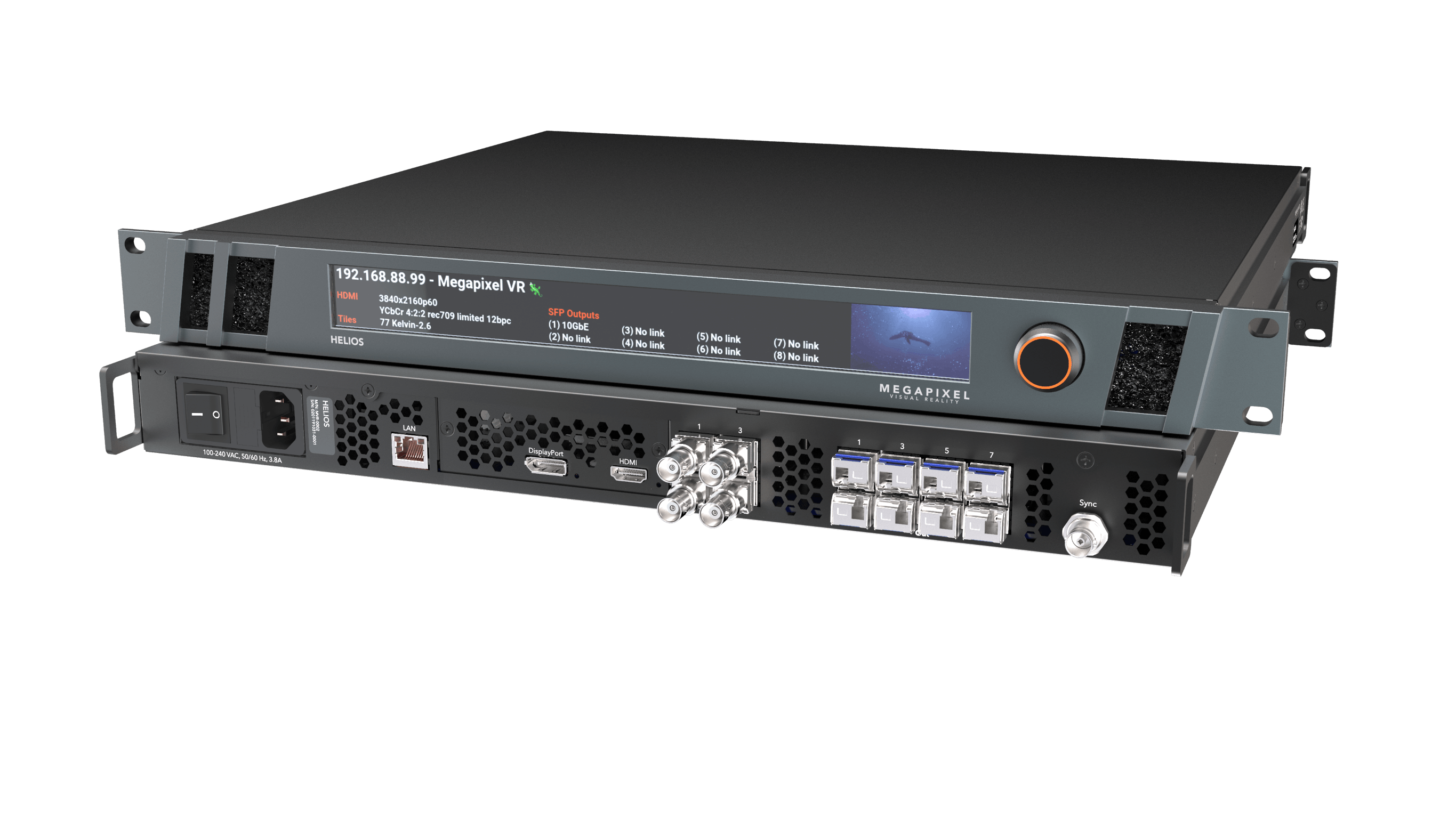

Megapixel VR

Video performance at its finest.
