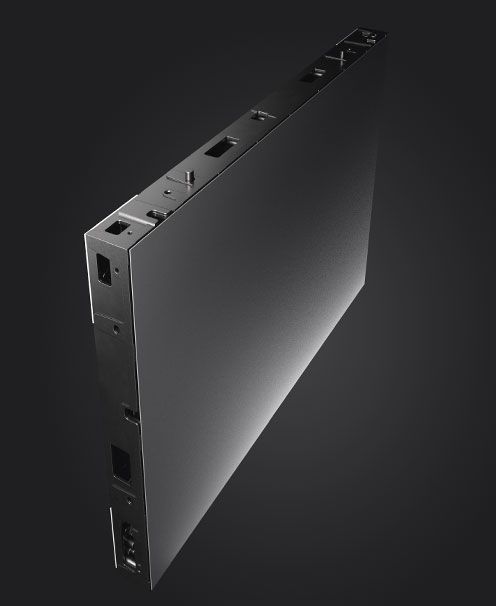

Engage Pro
Next-Era PerformanceNext-Era Performance
Our newest cabinet based display innovation. Built on the same platform as our renowned Engage Series, Engage Pro utilizes flip-chip COB MiniLED technology to drive ultra high contrast and high performance visuals to the Engage Series.
Incredible Blacks
COB Mini LED architecture delivers over 4x more contrast than traditional SMD LED.
Reject Reflections
The robust COB coating has been designed to minimize reflections enabling specification in brighter environments.
Ultra-Fine Pitch
From super-fine utility detail to sharp visual detail, the Engage Pro ultra-fine pitch display ensures your data is clear and on point.
TAA Compliant
Engage Series displays are TAA compliant, making them the perfect solution for secure environments.
Why Engage Series
MiniLED
Unleash a new era of brilliance with Engage Pro MiniLED (COB), where precision meets performance.
Greener & Brighter
Engage Pro employs the latest technologies to deliver higher brightness and lower power consumption.
Ultra Fine Pitches
Available if pitches from 0.7mm to 1.25mm, Engage Pro is the perfect solution for mission critical applications that require the highest resolutions.
16:9 Format
Take the complexity out of content creation and video wall design with our simple 16:9 format cabinets.
MiniLED
Greener & Brighter
Ultra Fine Pitches
16:9 Format
| Pixel Pitch | 0.7 mm | 0.9 mm | 1.25 mm |
|---|---|---|---|
| Module Size(W X H) | 600.0 x 337.5 mm 23.6 x 13.2 in |
||
| Module Array Per “Full HD” | 3 x 3 | ||
| Module Resolution | 768 x 432 | 640 x 360 | 480 × 270 |
| Module Depth | 50 mm / 1.97 in | ||
| Watts / Sq Ft² | 44.60 Max / 13.38 Avg | ||
| Weight / Sq Ft² | 2.34 kg / 5.2 lbs | ||
| Max Brightness (standard) | 700 nits | ||
| Viewing Angle Max | 178° horizontal / 178° vertical | ||
| Viewing Angle L50 | 160° horizontal / 160° vertical | ||
| Curvable | No | ||
| Serviceability | Front | ||
| Indoor / Outdoor | Indoor | ||
| Input Voltage | 110 / 120 / 208 / 220/ 240 VAC – Single Phase | ||
| Output Bit Depth | 8-bit Standard (16.7 Million) / Up to 10-bit (>1 Billion) | ||
| Lifetime | >100,000 hours | Warranty | 6 years |
