Narrow Pixel Pitch LED Displays

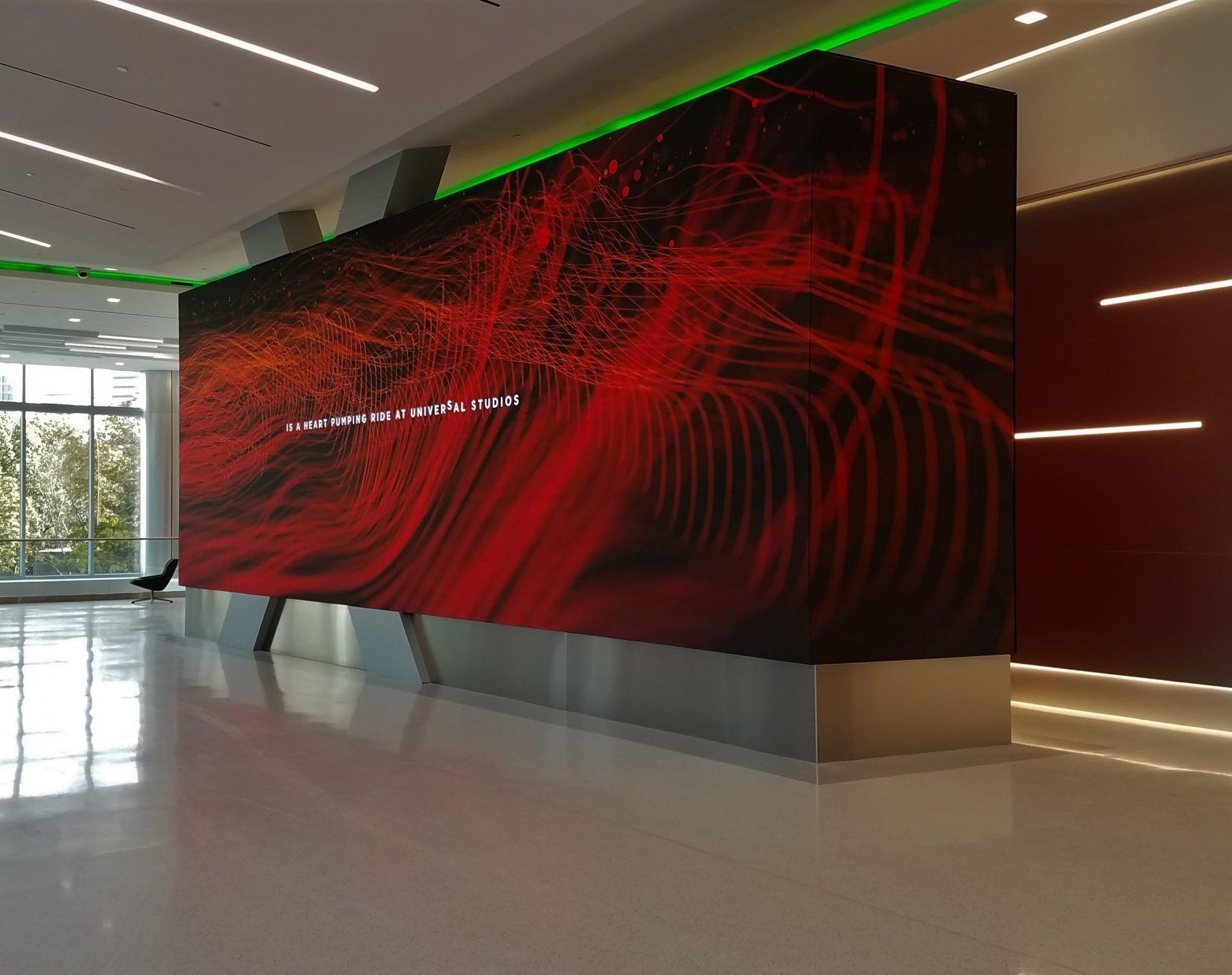

Elevate your environment with the NanoLumens Engage Series™. This flat-panel display series was created to give customers our simplest -and slimmest- solution yet. Ideal for close-distance viewing environments where image quality is of the utmost importance, narrow pitch Engage Series™ displays are built into a lightweight cabinet system with a native 16:9 ratio, making it easy to import and showcase all kinds of HD and 4K content.
Why Choose the ENGAGE?
Designed, assembled and supported in the USA, the ENGAGE Series™ is backed by the industry’s best-in-class six-year warranty. The 100,000 hours of display life, along with its unrivaled image quality and picture vibrancy cannot be matched by any other product on the market. The ENGAGE Series displays are super slim, lightweight and energy efficient. NanoLumens seamless construction and integration make these displays several steps ahead of the competition.
Visually Stunning

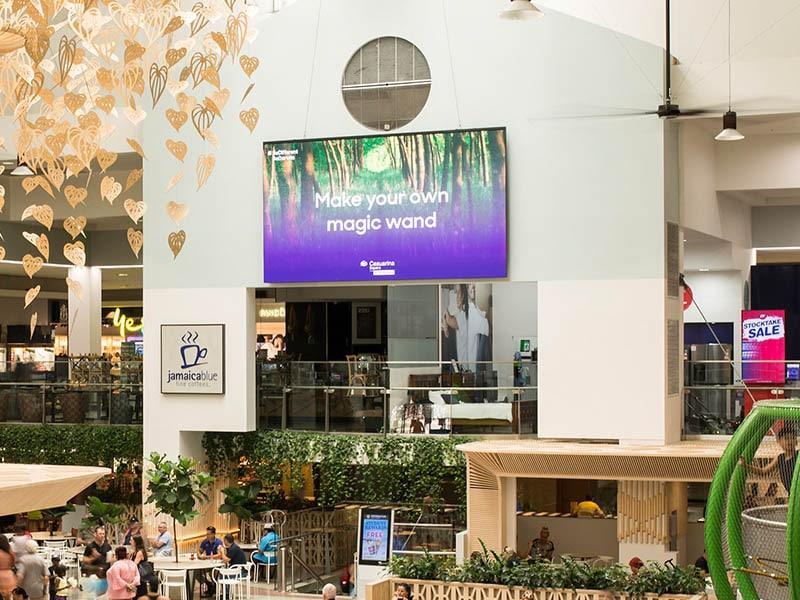

Perfect for up close viewing, you won’t find a more versatile display for your indoor needs than the NanoLumens ENGAGE Series™. That’s why Fortune 500 companies, professional sports teams, and major transportation hubs look to NanoLumens to meet their display needs.
| Pixel Pitch | 0.93mm | 1.2mm | 1.5mm | 1.8mm | 2.5mm |
|---|---|---|---|---|---|
| Module Size(W X H) 1 | 600.0 x 337.5 mm 23.62 x 13.29 in |
||||
| Module Array Per “Full HD” | 3 x 3 | 4 x 4 | 5 x 5 | 6 x 6 | 8 x 8 |
| Module Resolution | 640×360 | 480×270 | 384×216 | 320×180 | 240×135 |
| Module Depth 2 | 75.0 mm / 2.95 in | 50 mm / 1.97 in | |||
| Watts / Sq Ft² | 75.7 Max / 22.7 Avg | 53.7 Max / 16.1 Avg | 41.3 Max / 12.4 Avg | 45.9 Max / 13.8 Avg | |
| Weight / Sq Ft² | 4.02 kg / 8.99 lbs | 2.34 kg / 5.2 lbs | |||
| Max Brightness (standard) 3 | 750 nits | 700 nits | 850 nits | 1200 nits | |
| Viewing Angle Max 4 | 178° horizontal / 178° vertical | ||||
| Viewing Angle L50 4 | 170° horizontal / 170° vertical | 160° horizontal / 160° vertical | |||
| Curvable | NO | ||||
| Serviceability | Front | ||||
| Indoor / Outdoor | Indoor | ||||
| Input Voltage | 110 / 120/ 208 / 220/ 240 VAC – Single Phase | ||||
| Output Bit Depth 5 | 8-bit Standard (16.7 Million) / Up to 10-bit (>1 Billion) | ||||
| AWARE® Enabled (upon request) |
Yes | ||||
| Lifetime | >100,000 hours | ||||
1 Cabinet/module footprint, standard décor/frame adds 1/2” to overall system height and width
2 Cabinet/module depth, standard décor/frame depth adds 1/8” to overall system depth
3 Higher brightness is available through customization
4 L50 is objective measured angle at which brightness decreases to 50% of max brightness
5 Engage Series LED displays process at up to 14 bits per channel internally. Final output bit depth is limited by content source capabilities.
ALL SPECS AS OF 7/2020
